Description And Operation: Description

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

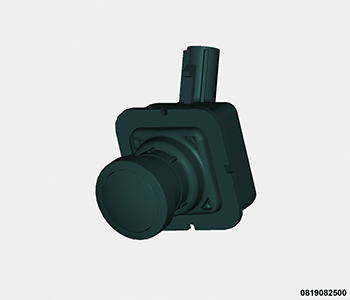

There are four cameras located on this vehicle that are part of the Surround View Camera System. One is located in the front grille, one in each side door mirror and the last camera is the rear view camera. All four cameras are mounted in a similar vertical position approximately 750 mm (29.5 inches) minimum from the ground each with an unobstructed 190 degree angle field of view. Both mirror mounted cameras are angled slightly rearward aiming at the center of the vehicle's right and left sides. Each camera feed has two inline connectors.

If the mounting surfaces of the camera are damaged, they must be repaired correctly and the camera calibration must be performed.

For additional description and operation of this system, refer to DESCRIPTION AND OPERATION .
