Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

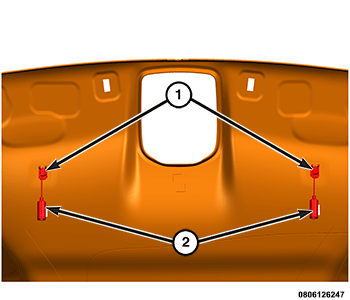

- Insert the microphone wire harness connector pigtail (1) through the headliner and connect the pigtail to the headliner wire harness connector.
- Install the microphone in the headliner. Be certain the microphone is flush with the surface of the headliner and the retaining tabs (2) are securely in position.
- Install the headliner. Refer to HEADLINER, REMOVAL AND INSTALLATION .
