Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
NOTE:
With paddle shift shown in illustration, without paddle shift similar.
- Route the wire harness through the slot (2) in the steering wheel and connect the wire harness connector (1).
- Position the steering wheel bezel to the steering wheel.

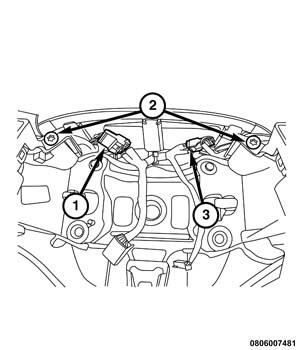

- Connect the speed control switch wire harness connector (3).
- Connect the EVIC switch wire harness connector (1).
- Install and securely tighten the two steering wheel bezel retaining screws (2).

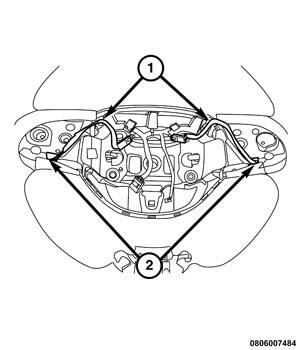

- Install and securely tighten the left and right steering wheel bezel retaining screws (2).

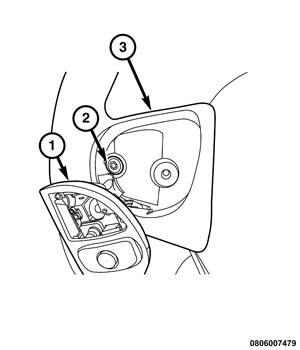

- Install the left and right switch (1) into the steering wheel opening (3).
- Install and securely tighten the left and right switch (1) retaining screws (2).

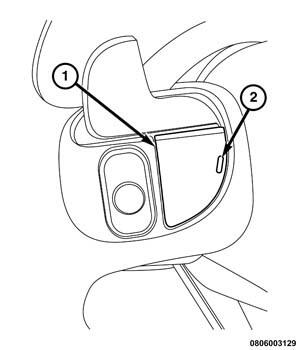

- Install the left and right remote radio switch with paddle shift unit cover (1).
- Install the driver air bag. Refer to AIR BAG, DRIVER, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
