Removal And Installation: Installation

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

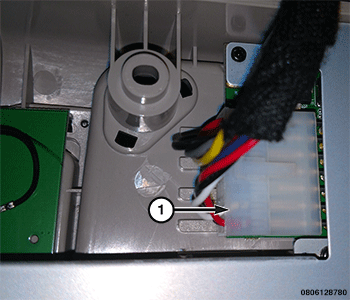

GC0177600Courtesy of CHRYSLER GROUP, LLC
  1. Connect the wire harness connector (1) to the overhead DVD player.
    GC0177647Courtesy of CHRYSLER GROUP, LLC
  2. Install the four screws and tighten securely.
  3. Install the four covers.
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
