Description And Operation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

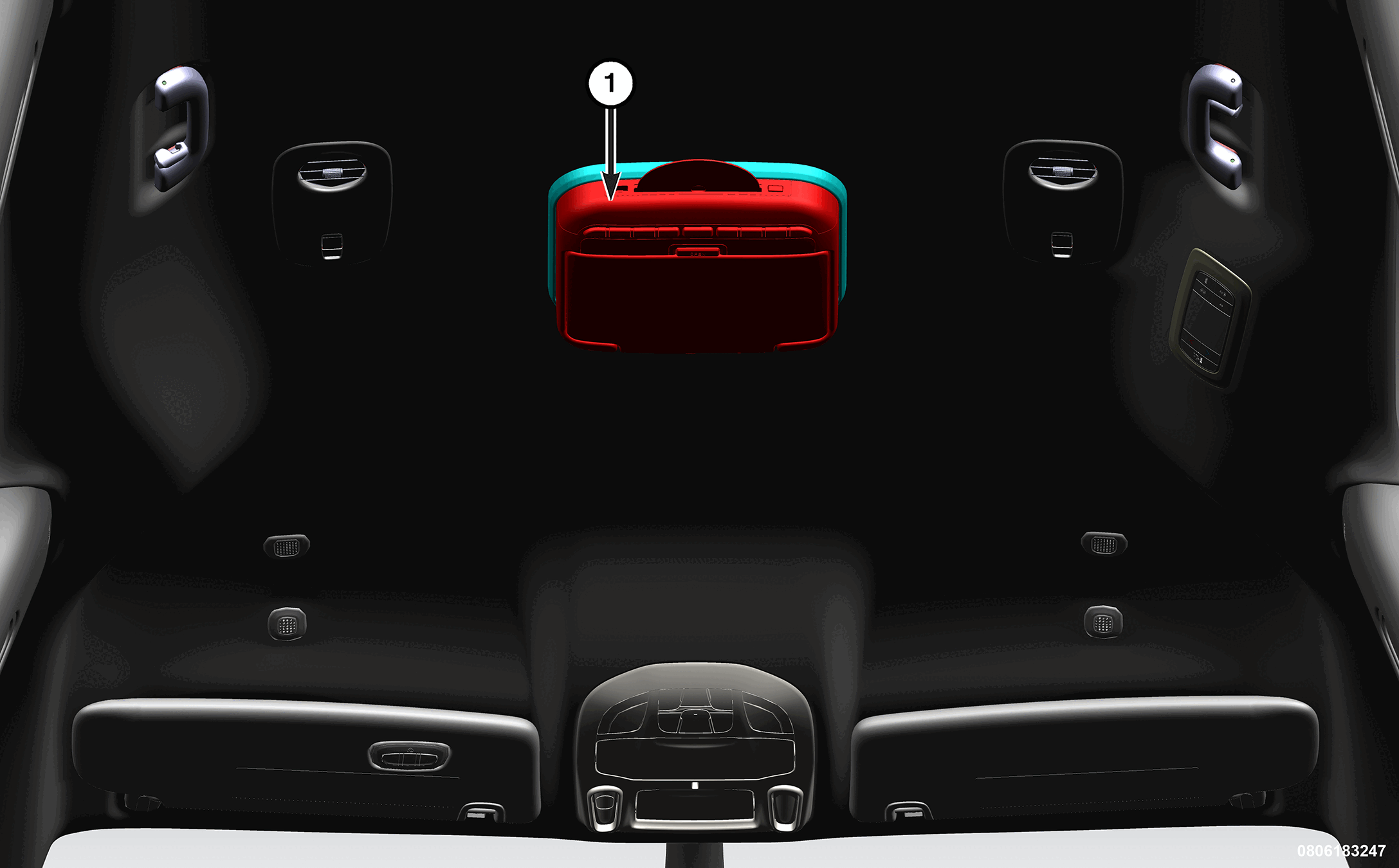

The overhead mounted DVD/Blu-Ray player (1) has:
- ignition (RUN/ACC) power circuit from the Power Distribution Center (PDC) that feeds the inline fused power input circuit
- an second inline fuse between the overhead DVD player and the auxiliary media hub switch provides fused B+
- a ground circuit to an eyelet located on the left side of the floor console, between the left front seat and console
- a ground circuit between the auxiliary media hub switch and overhead DVD player
- hardwired audio inputs to the radio through the auxiliary media hub switch
