Description And Operation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

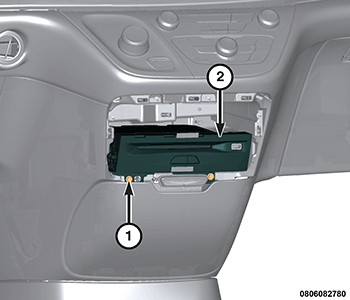

The center stack mounted Blu-Ray player (2) has:
- Battery power from the Power Distribution Center (PDC)
- Ground to the instrument panel
- Communication on the Controller Area Network - Interior High Speed (CAN-IHS) bus system
- Hardwired audio inputs to the radio
