Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

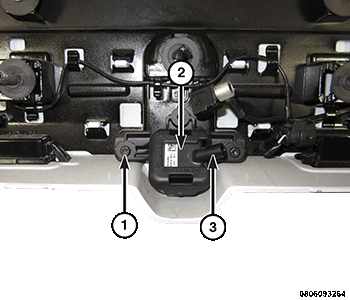

- Position the RVC (2) to the back of the lamp bar.
- Install and tighten the RVC to lamp bar fasteners (1) securely.
- Connect the jumper wire harness connector (3) to the RVC (2).
- Install the rear lamp bar. Refer to LAMP BAR, EXTERIOR HANDLE, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- If equipped with the Surround View Camera System, perform the camera calibration procedure
Refer to MODULE, CENTRAL VISION PROCESSING (CVPM), MODULE PROGRAMMING .
