Description And Operation: Description
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

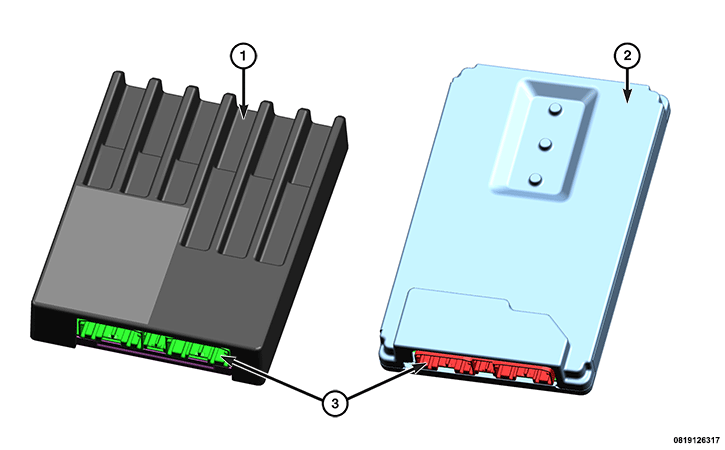

There are two optional amplifiers available. The Premium I Sound System uses a 12 channel amplifier (1) rated at 506 watts and includes 13 speakers in the system. The Premium II and III Harman Kardon Sound system uses a 12 channel amplifier (2) rated at 760 watts and includes 18 or 20 speakers in the system.
For either amplifier, three integral connector receptacles (3) connect the amplifier to the vehicle electrical system through dedicated take outs and connectors of the body wire harness.
Both amplifiers are located in the same location for either sound system; on the right side bulkhead below the A-pillar.
