Description And Operation: Description
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

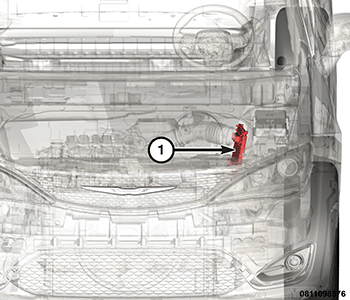

The Powertrain Control Module (PCM) (1) is mounted in a bracket, next to the master cylinder and left strut tower.

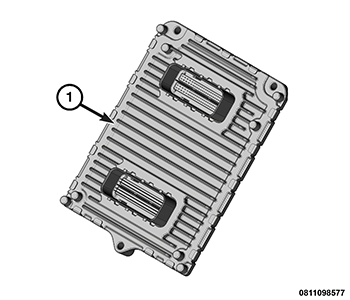

The PCM (1) has two main connectors:
- Gray connector
- Chassis connector (C1)
- Attaches to the PCM and is connected to the dash and body harness through in line connectors
- Cream connector
- Engine connector (C2)
- Attaches to engine harness
