Removal And Installation: Removal

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the drivers front seat to the full forward position.
  2. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    GC0188574Courtesy of CHRYSLER GROUP, LLC

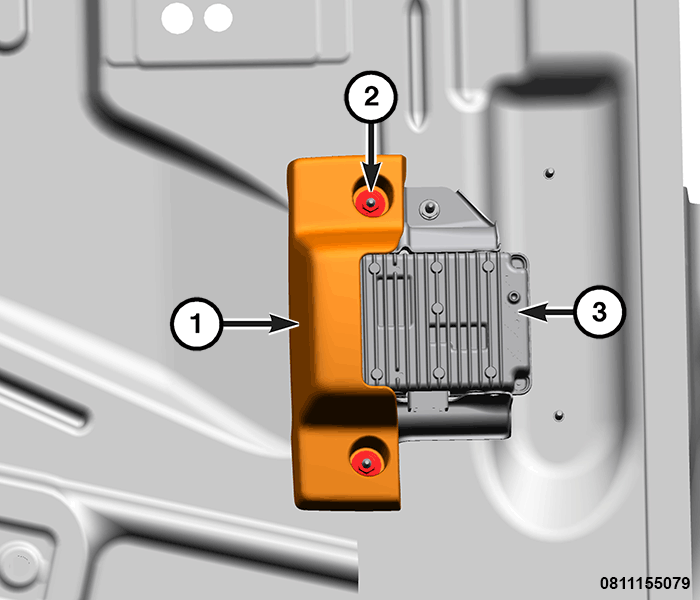

  3. Remove the fasteners (2) and module cover (1) to gain access to the Power Inverter Module (PIM) (3).
    GC0188573Courtesy of CHRYSLER GROUP, LLC

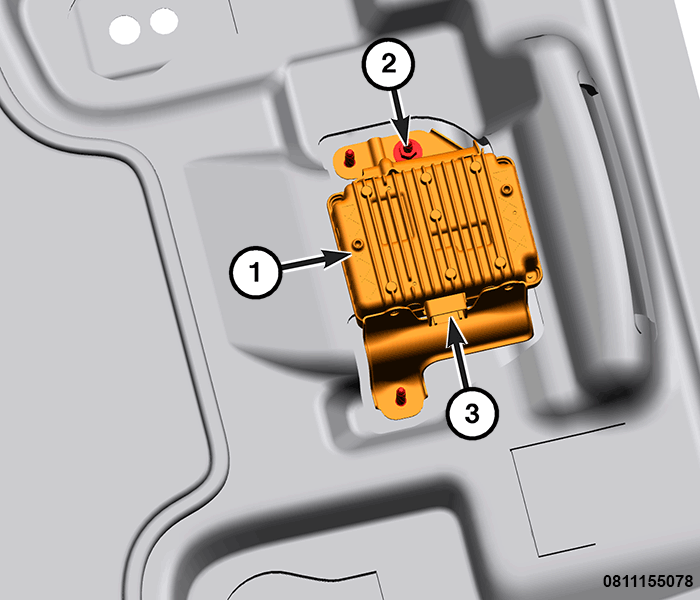

  4. Disconnect the wire harness connector (3) from the PIM (1).
  5. Remove the fastener (2) from the PIM.
  6. Remove the PIM the vehicle.
