Removal And Installation: Installation

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
GC0173550Courtesy of CHRYSLER GROUP, LLC

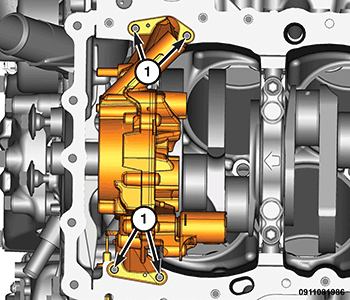

  1. Align the locator pins to the engine block and install the oil pump with the four bolts (1) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS  .
    GC0144495Courtesy of CHRYSLER GROUP, LLC

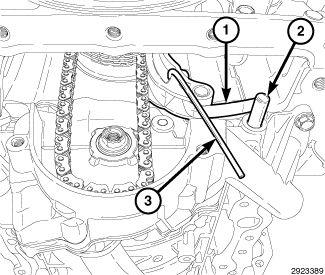

  2. Install the oil pump chain tensioner on the oil pump.
  3. Position the oil pump chain tensioner spring (1) above the dowel pin (2).
  4. Push back the oil pump chain tensioner and insert a suitable retaining pin (3) such as a 3 mm Allen wrench.
    GC0144494Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    There are no timing marks on the oil pump gear or chain. Timing of the oil pump is not required.

    CAUTION:

    Always reinstall timing chains so that they maintain the same direction of rotation. Inverting a previously run chain on a previously run sprocket will result in excessive wear to both the chain and sprocket.

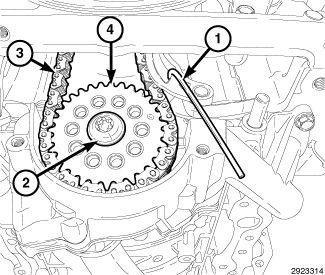

  5. Place the oil pump sprocket (4) into the oil pump chain (3). Align the oil pump sprocket with the oil pump shaft and install the sprocket. Install the T45 retaining bolt (2) and tighten the bolt to the proper torque specifications. Refer to TORQUE SPECIFICATIONS  .
  6. Remove the retaining pin (1). Verify that the oil pump chain is centered on the tensioner and crankshaft sprocket.
  7. Rotate the crankshaft clockwise one complete revolution to verify proper oil pump chain installation.
    GC0144277Courtesy of CHRYSLER GROUP, LLC

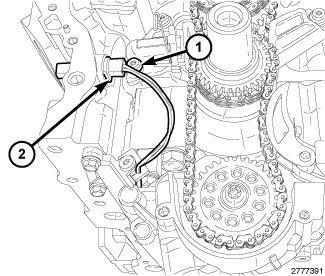

  8. Position the oil pump solenoid electrical connector (2) into the engine block. Rotate the connector so that it can be pushed past the primary chain tensioner mounting bolt (1). Then rotate the connector slightly counterclockwise and push it into the engine block until it locks in place.
    GC0173678Courtesy of CHRYSLER GROUP, LLC

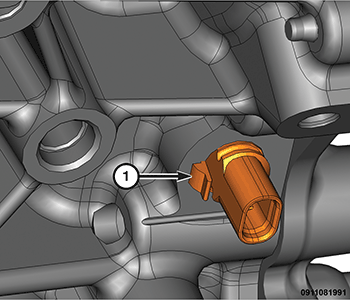

  9. Verify that the oil pump solenoid wire harness connector retention lock tab (1) is engaged to the engine block.
    GC0173561Courtesy of CHRYSLER GROUP, LLC

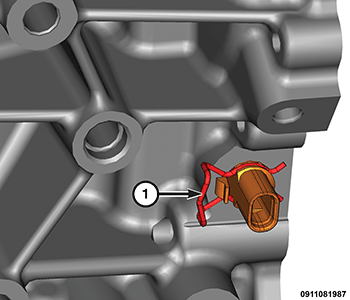

  10. Install the oil pump solenoid wire harness connector retainer (1).
    GC0173539Courtesy of CHRYSLER GROUP, LLC

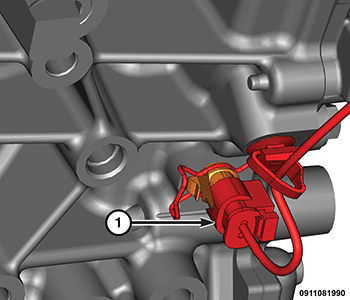

  11. Connect the engine wire harness to the oil pump solenoid wire harness connector (1).
  12. Install the oil pump pick-up. Refer to PICK-UP, OIL PUMP, REMOVAL AND INSTALLATION .
  13. If removed, install the oil filter and fill the engine crankcase with the proper specification oil to the correct level (Refer to - Engine/Lubrication/Standard Procedure).
    CAUTION:

    A MIL or low oil pressure indicator that remains illuminated for more than 2 seconds may indicate low or no engine oil pressure. Stop the engine and investigate the cause of the indication.

  14. Start and run the engine until it reaches normal operating temperature.
