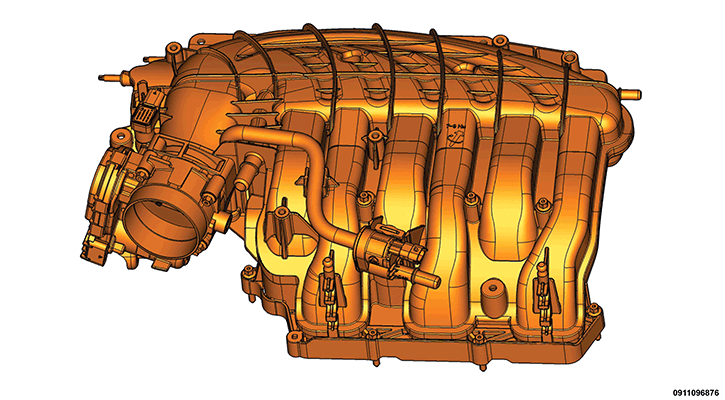

Upper Intake Manifold
The upper intake manifold is an injection molded nylon composite design. The upper intake manifold is sealed to the lower intake manifold using six individual press-in-place Fluoroelastomer (FKM) gaskets. Inspect the gaskets whenever the upper intake manifold is removed from the engine. The gaskets may be reused if no issues are found. There is a silencer pad positioned between the upper and lower intake manifolds for improved Noise, Vibration and Harshness (NVH). The left cylinder head cover has two alignment posts to aid proper installation of the silencer pad. The eight upper intake manifold fasteners thread directly into the composite lower intake manifold and are a self-taping design. If the upper intake manifold is damaged or cracked, it must be replaced.
The Electronic Throttle Control (ETC) and Manifold Air Pressure (MAP) sensor are attached directly to the upper intake manifold. The upper intake manifold also provides vacuum ports for brake booster, positive crankcase ventilation (PCV) and emissions control.
