Lubrication System
The lubrication system is a full flow filtration, pressure feed type lubrication system. The oil pump is mounted to the bottom of the cylinder block and chain driven by the crankshaft sprocket. The oil pump pick-up tube is attached to the oil pump. There are three oil gallery plugs installed in the engine block. A system oil pressure sensor allows oil pressure to be monitored with a diagnostic scan tool. The oil pressure sensor is located on the oil filter housing assembly which is mounted to the top of the engine block between the cylinder heads. The oil temperature sensor is mounted on the rear of the right cylinder head. The oil cooler is mounted to the oil filter housing. There is a pressure relief valve in the oil pump that is only activated on a cold start or for emergency relief since the oil pump output is self-regulating. There are three piston oil cooler jets mounted to the engine block. Each jet cools two pistons.

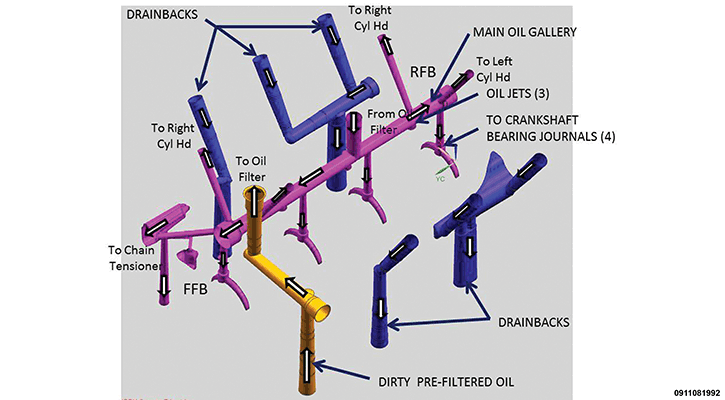

Oil Flow:
- The oil from the oil pan is pumped by a vane type oil pump mounted to the bottom of the cylinder block that is chain driven by the crankshaft sprocket
- The oil from the pump travels to the oil filter element and then to the oil cooler assembly
- After the oil has been filtered and cooled, the oil enters the main oil gallery
- The pressurized oil travels through the main gallery to the four main journals to lubricate the crankshaft main bearings
- The pressurized oil travels through the crankshaft main journals to cross-drilling supplying oil to the connecting rod journals
- From the number one main bearing galleries, oil travels to the right secondary chain tensioner and to the primary chain idler shaft
- The main oil gallery also supplies oil to three sets of piston oil cooling jets
- From the cylinder block, the oil flows through the galleys into the left and right cylinder heads
- Left cylinder head oil is supplied to the left secondary timing chain tensioner, camshaft journals and hydraulic lash adjusters
- Right cylinder head oil is supplied to the right camshaft journals and hydraulic lash adjusters
- The camshaft valve lobes and rocker arms are lubricated through a small hole in the rocker arm; oil flows through the lash adjuster then through the rocker arm and onto the camshaft lobe
- Oil also flows through each of the four forward camshaft bearings into the camshafts and phasers
| FROM | TO |
|---|---|
| Oil Pickup Tube | Oil Pump |
| Oil Pump | Oil Filter |
| Oil Filter | Oil Cooler |
| Oil Cooler | Block Main Oil Gallery |
| Block Main Oil Gallery | 1. Crankshaft Main Journals |
| 2. Left Cylinder Head | |
| 3. Right Cylinder Head | |
| 4. Piston Cooling Jets | |
| Crankshaft Number One Main Journal | 1. Primary Chain Idler Shaft |
| 2. Right Secondary Chain Tensioner | |
| 3. Oil Pump Feedback | |
| Crankshaft Main Journals | Crankshaft Rod Journals |
| Left Cylinder Head | 1. Left Secondary Chain Tensioner |
| 2. Hydraulic Lash Adjusters | |
| 3. Camshaft Journals | |
| 4. Phaser Oil Control Valves | |
| Right Cylinder Head | 1. Hydraulic Lash Adjusters |
| 2. Camshaft Journals | |
| 3. Phaser Oil Control Valves | |
| Hydraulic Lash Adjusters | 1. Rocker Arms |
| 2. Cam Lobes |
