Feeler Gauge

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

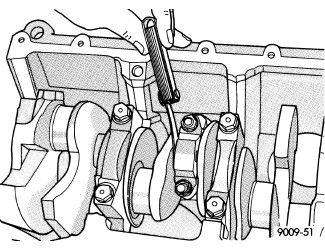

GC0104510Courtesy of CHRYSLER GROUP, LLC
  1. Slide a snug-fitting feeler gauge between the connecting rod and crankshaft journal flange. Compare the measured side clearance to ENGINE SPECIFICATIONS  .
  2. Repeat this procedure for each connecting rod. Rotate the crankshaft for connecting rod accessibility.
