Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

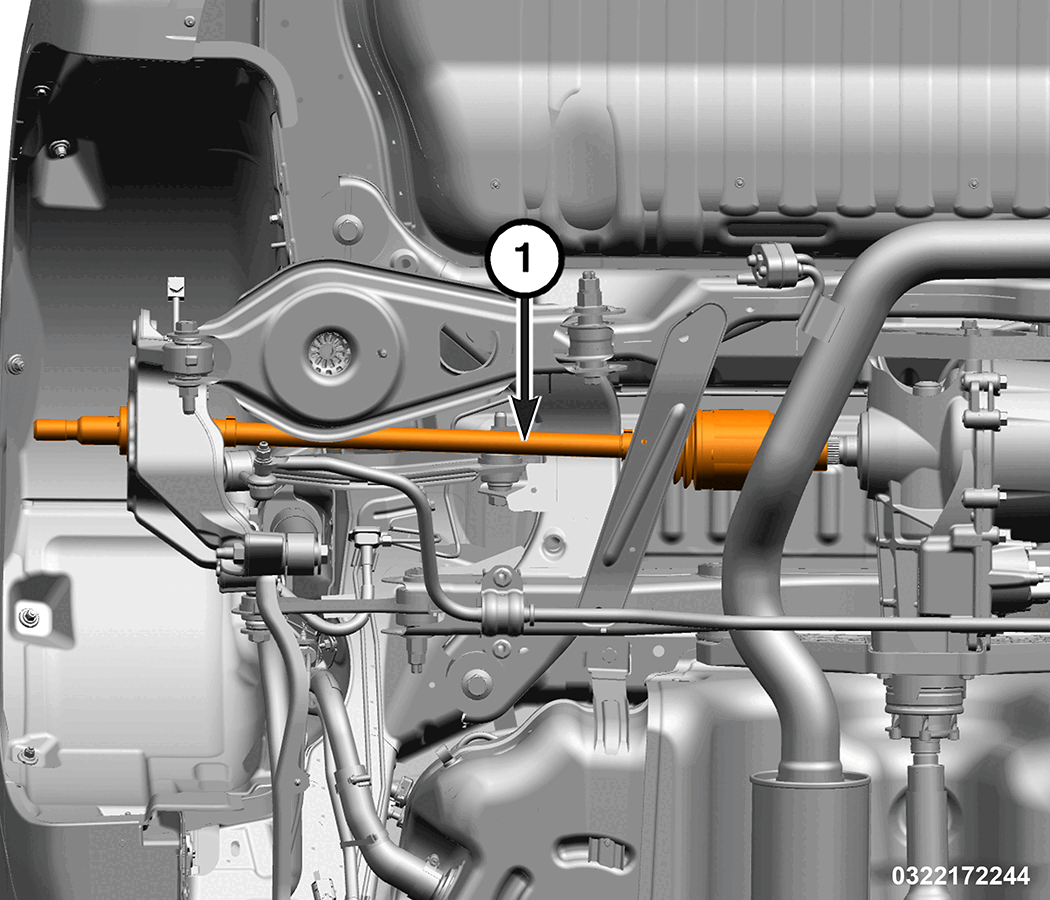

- Install the halfshaft (1) until the circlip engages in the RDM.NOTE:
If the circlip is fully engaged, the halfshaft will not be removable from RDU by hand.
- Remove the jack stand compressing the suspension.
- Install the rear hub. Refer to HUB AND BEARING, REMOVAL AND INSTALLATION
.

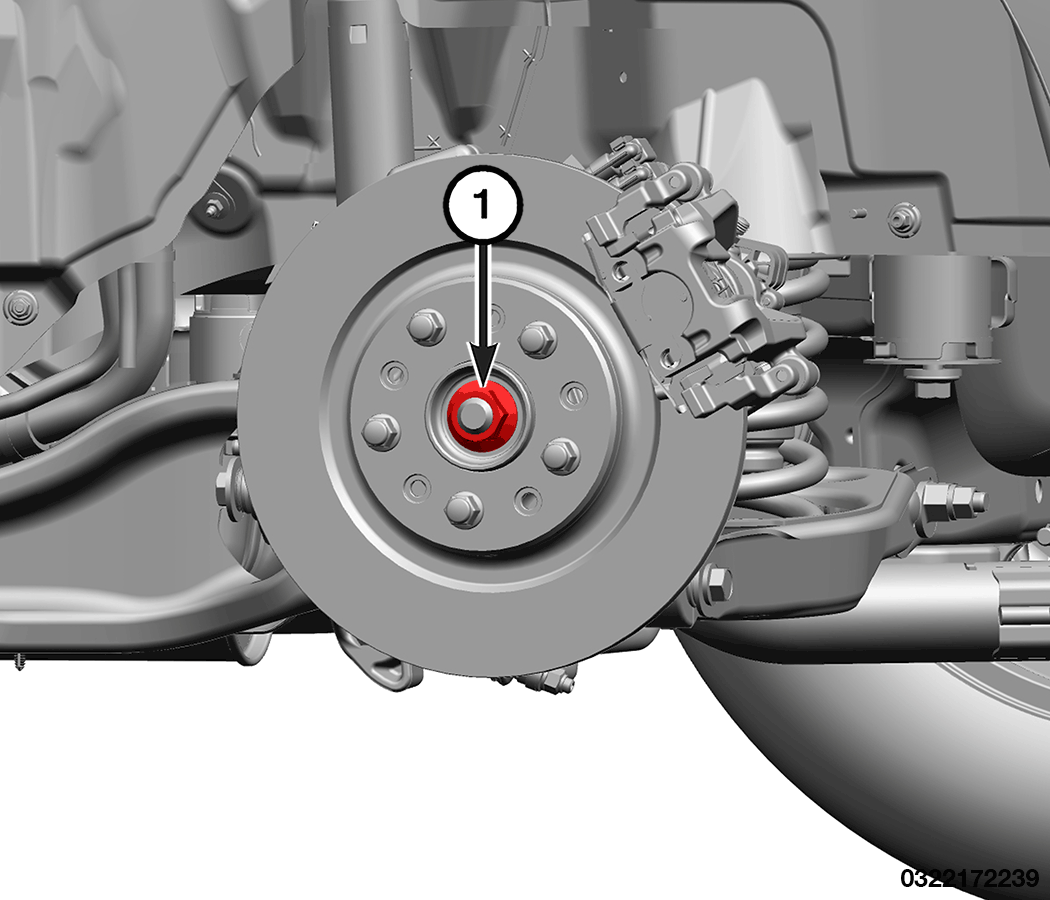

- Install a NEW hub nut (1). Tighten to proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
- Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
