Removal And Installation: Removal
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE
.
- Disconnect the pressure sensor wire harness connector (1).

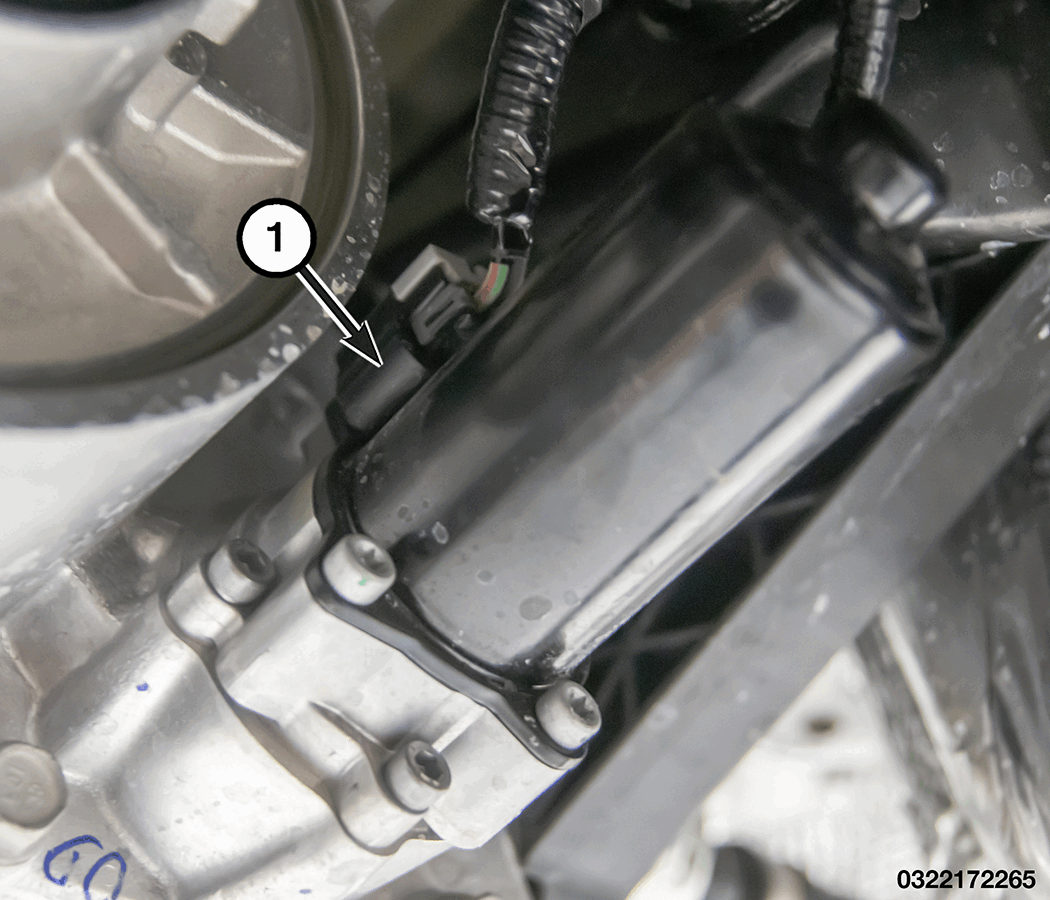

- Disconnect the pump motor wire harness connector (1).CAUTION:
Do not allow the driveshaft to hang from the vehicle unsupported. Damage may occur to the joint, boot, and center bearing from over-angulation.
- Apply alignment index marks to the rear propeller shaft flange and the rear pinion flange.

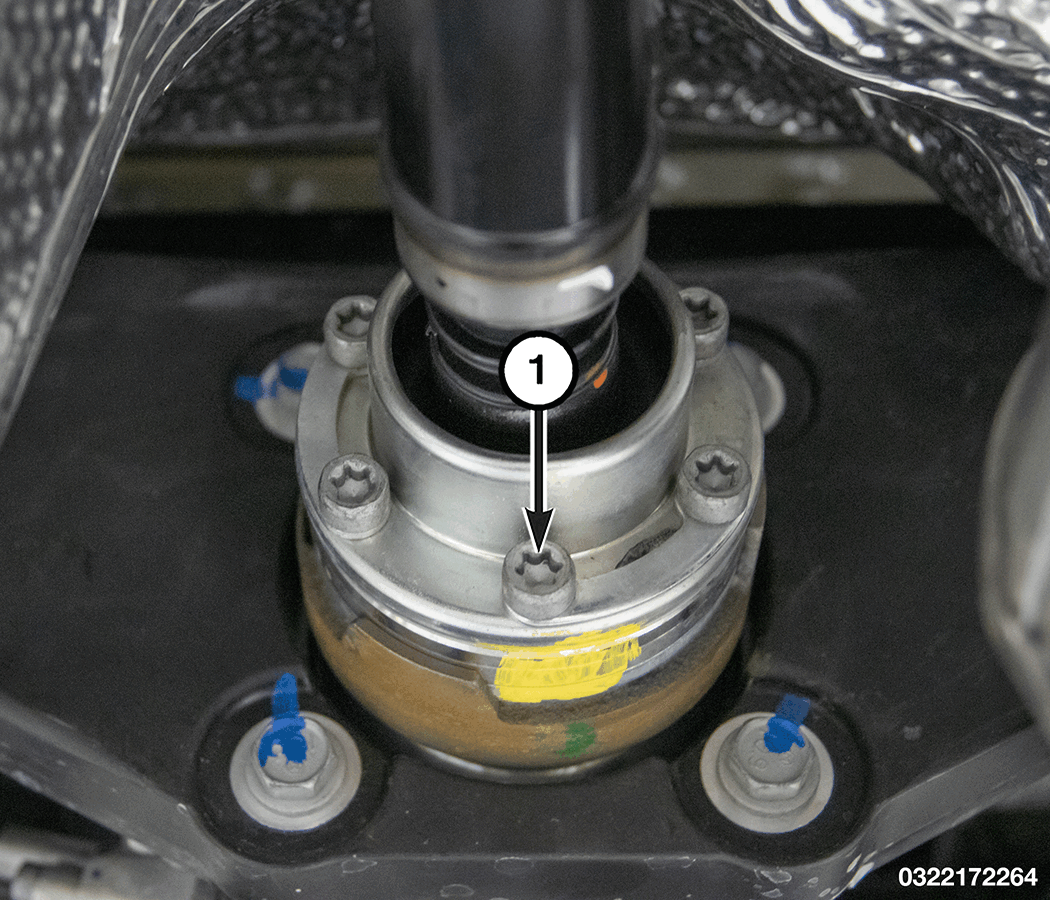

- Remove and discard the rear propeller shaft bolts (1).
- Separate the rear propeller shaft from the rear pinion flange and secure the shaft to the side.
- Remove the rear left halfshaft. Refer to REMOVAL AND INSTALLATION .
- Support the Rear Drive Module (RDM) with a suitable jack and secure it with chains.

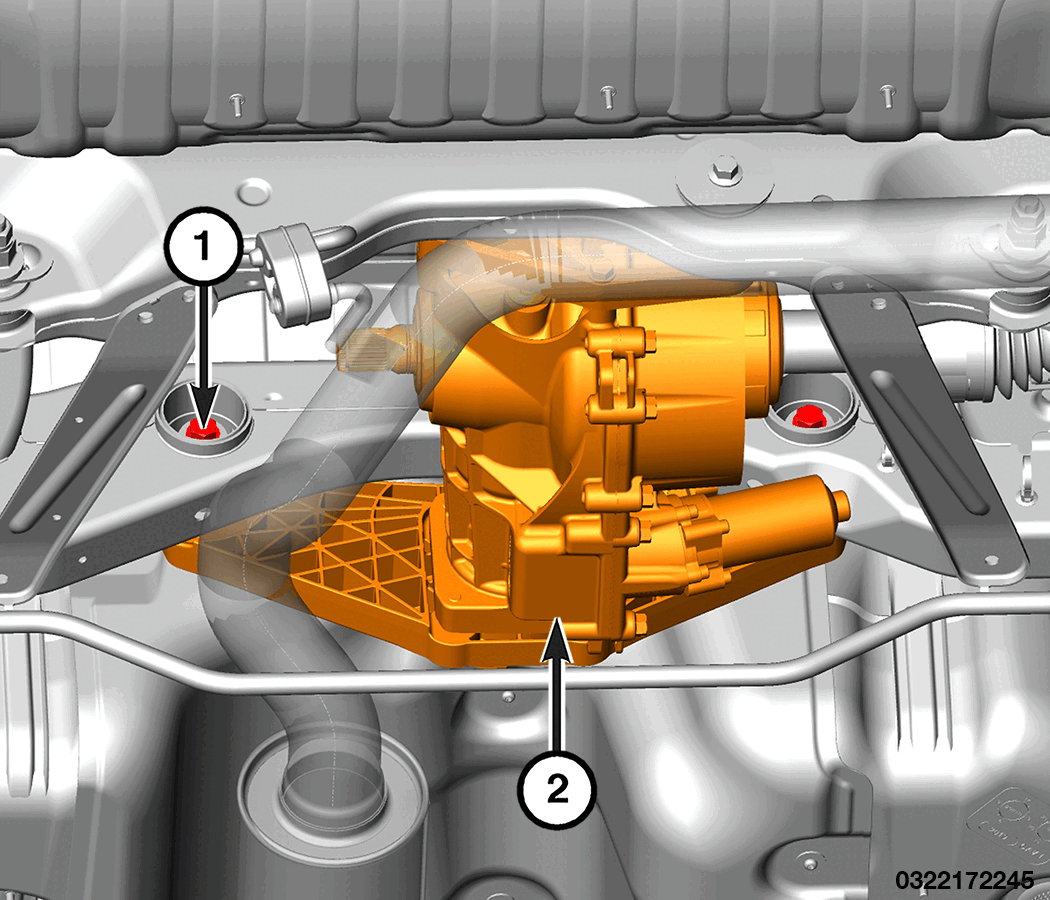

- Remove the front RDM bracket to isolator bolts (1).
- Remove the RDM bracket to RDM bolts (1).

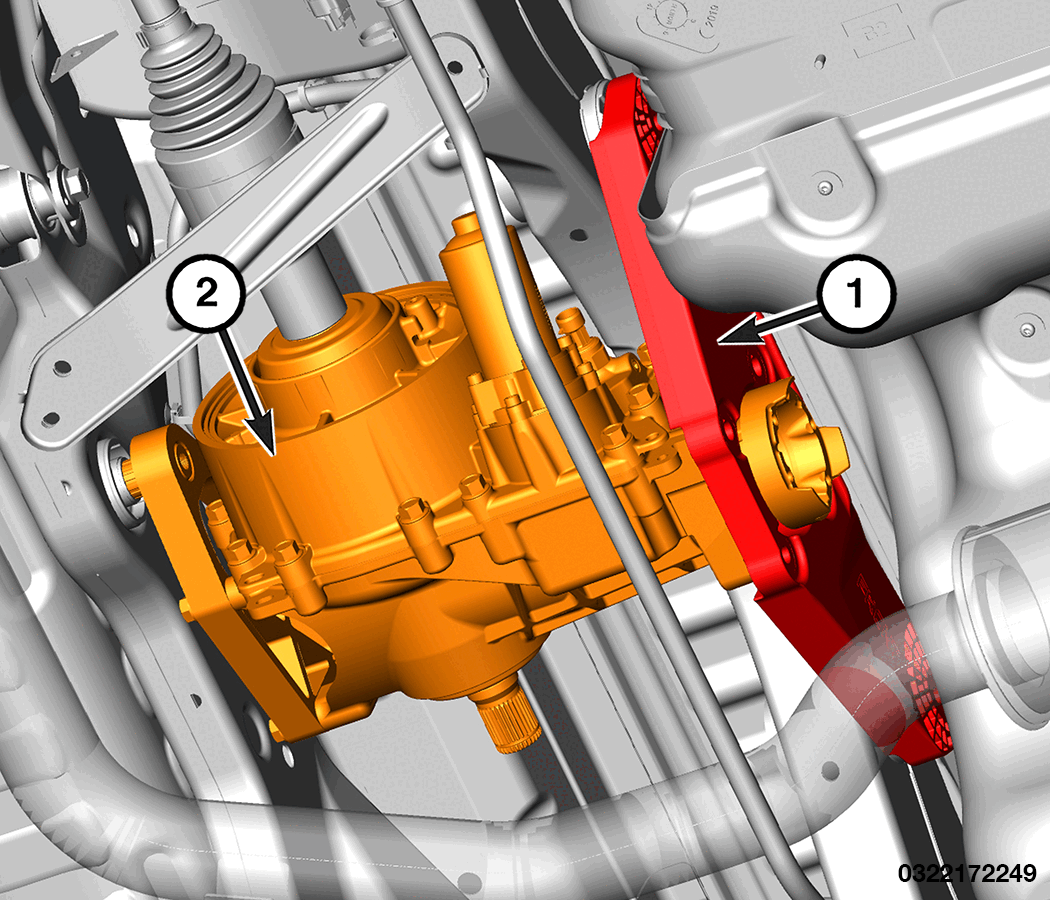

- Remove the RDM bracket (1) from the vehicle.

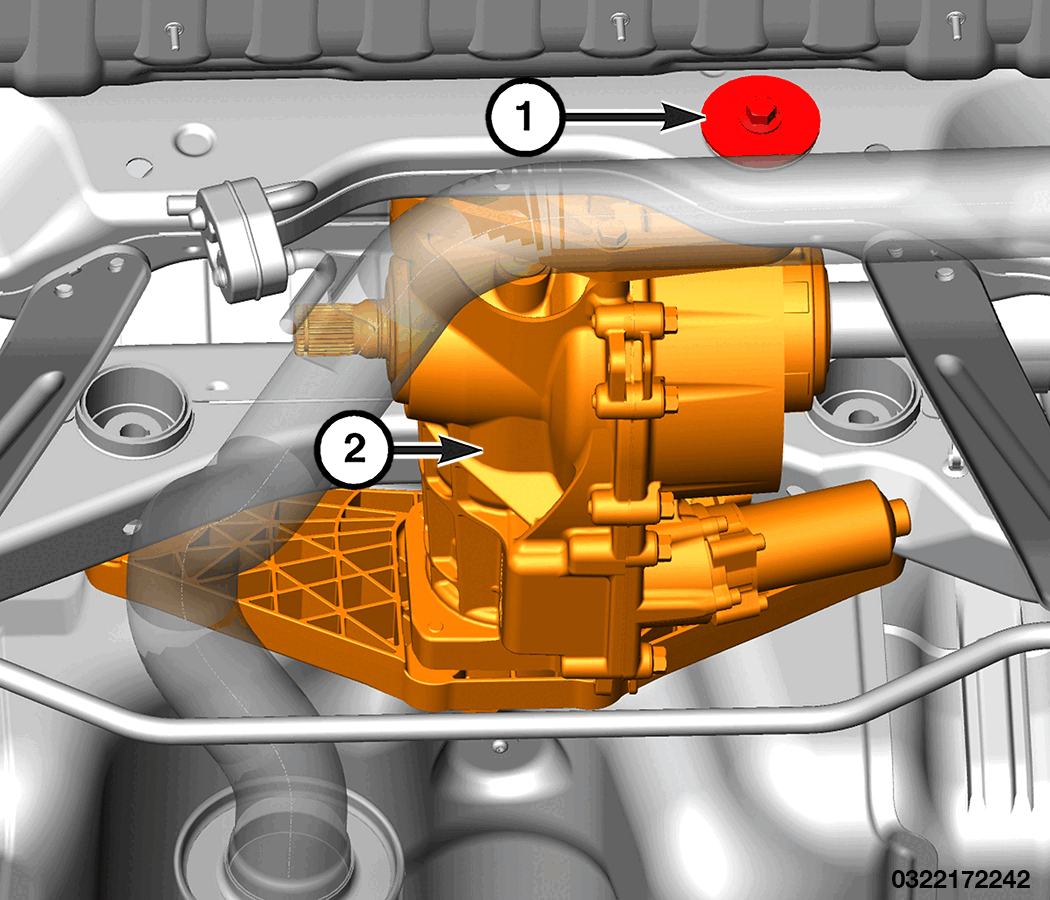

- Remove the rear RDM isolator bolt (1)

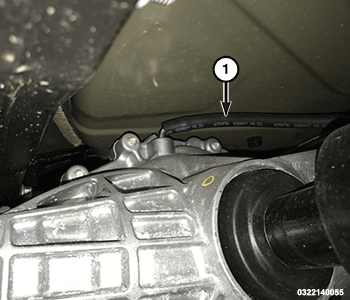

- Disconnect the vent hose (1).

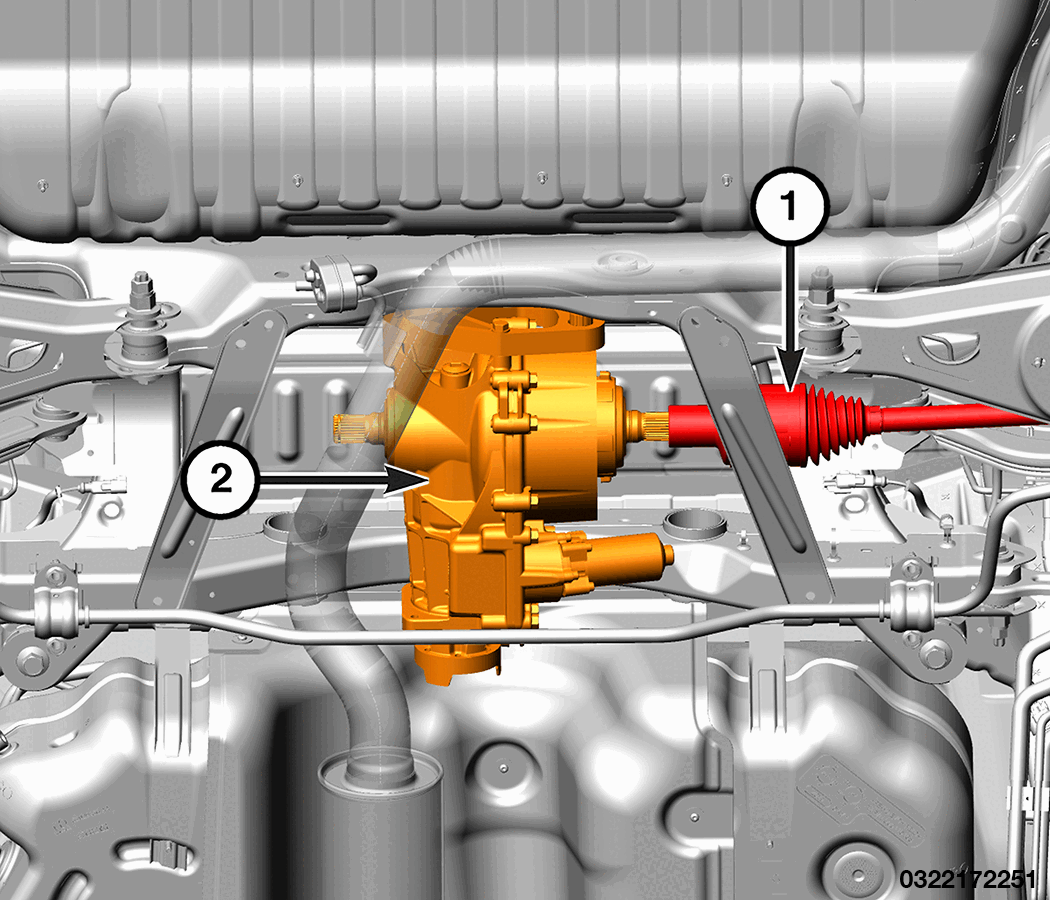

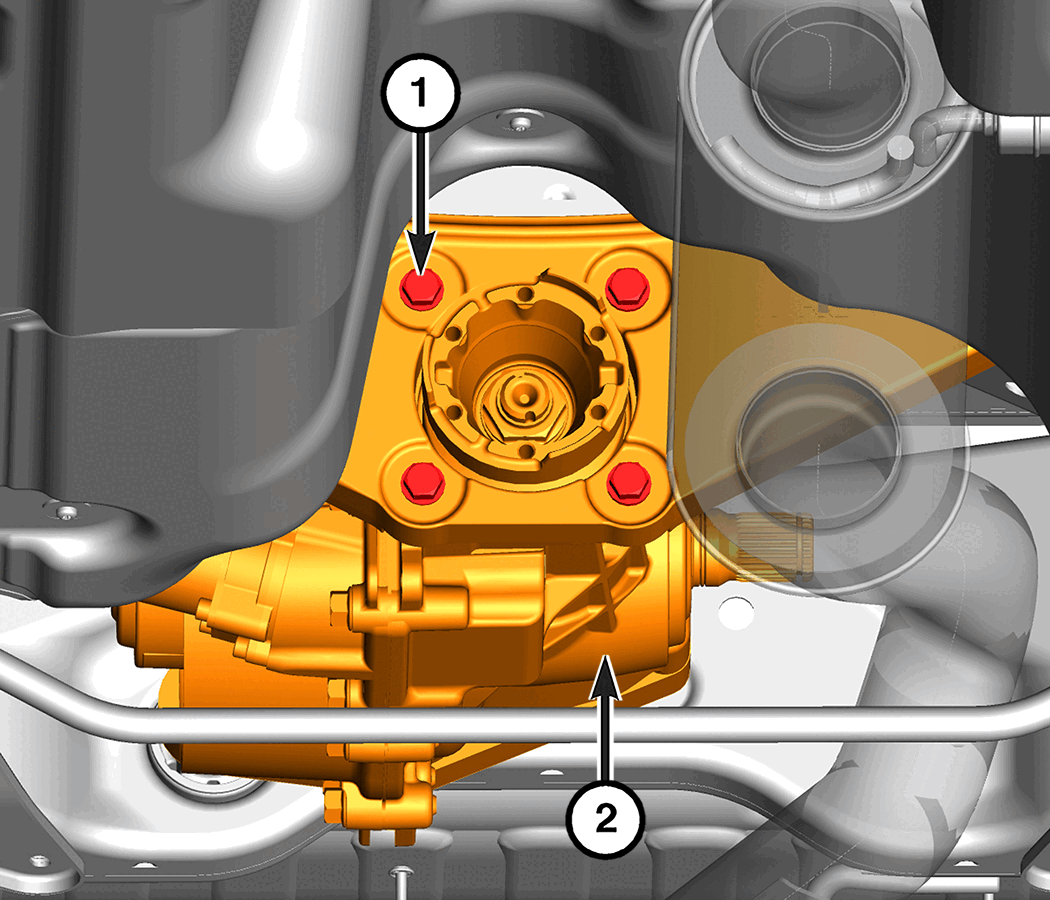

- Disconnect the RH halfshaft (1) from the RDM (2).

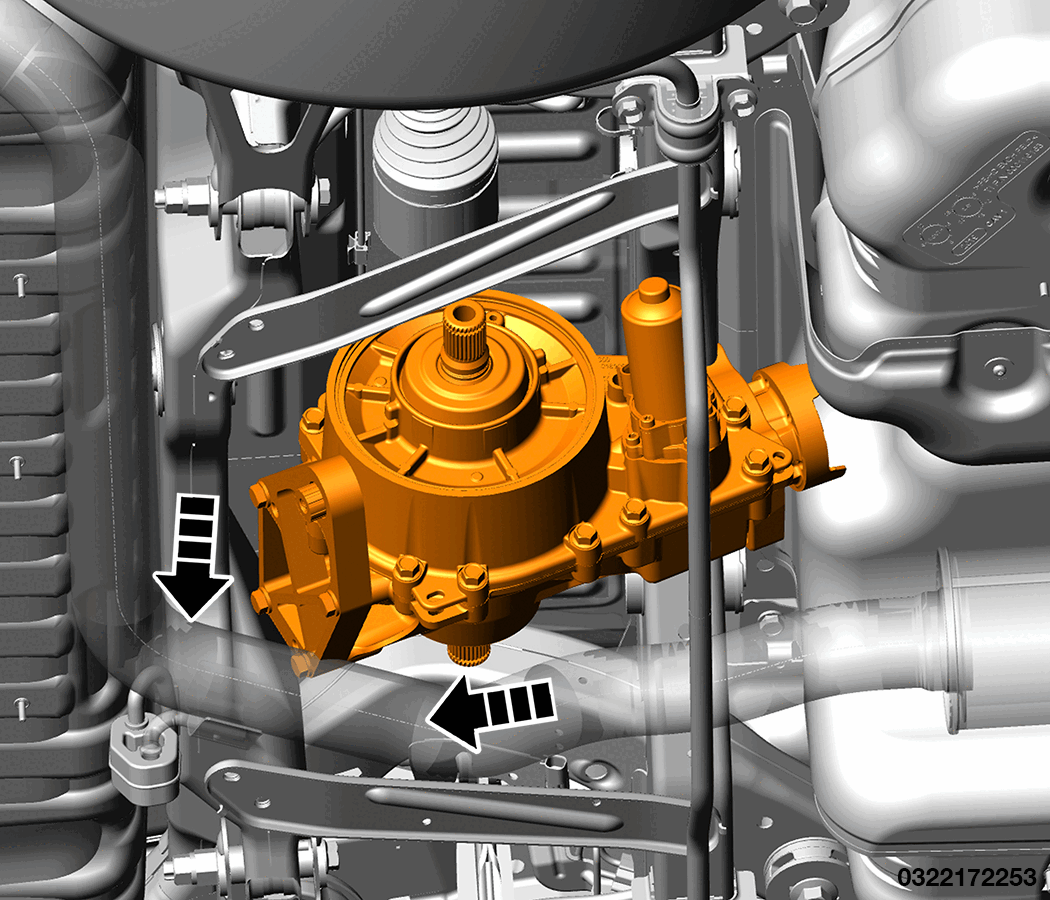

- Remove the RDM from the vehicle.
