Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

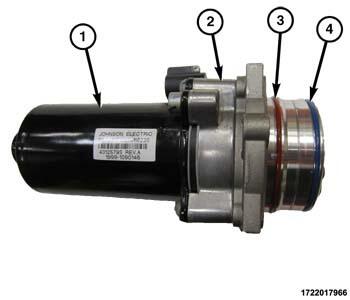

The pump motor assembly O-rings must be replaced. The O-rings are of different size and must not be interchanged. The red O-ring (3) goes on first and is nearest the pump flange, followed by the blue O-ring (4) that sits nearest the outboard edge.
- Install NEW
pump motor O-rings.

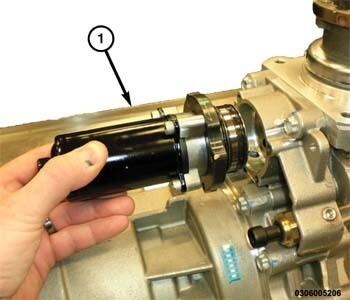

- Install the pump motor assembly (1) onto the RDM.

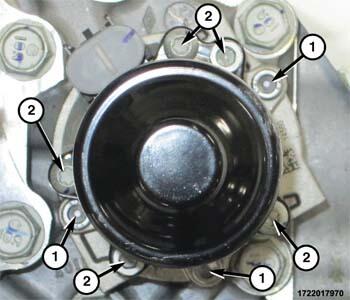

- Install the three pump motor bolts (1) and uniformly finger tighten until the pump motor assembly is fully seated to housing. Tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS
.
- Connect the pump motor wire harness connector (2).
- Remove the support and lower the vehicle.
