Lamp-Assembly-Left Front C2 (LHD) Connector End View (D6605B)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 7283-8852-30

Part Description: Not Available

Connector No: D6605B

Option: LHD

Repair Kit Part Number: 68528156AA

Cavity Count: 3

Fig 1: Lamp-Assembly-Left Front C2 Connector End View (LHD)

Courtesy of CHRYSLER

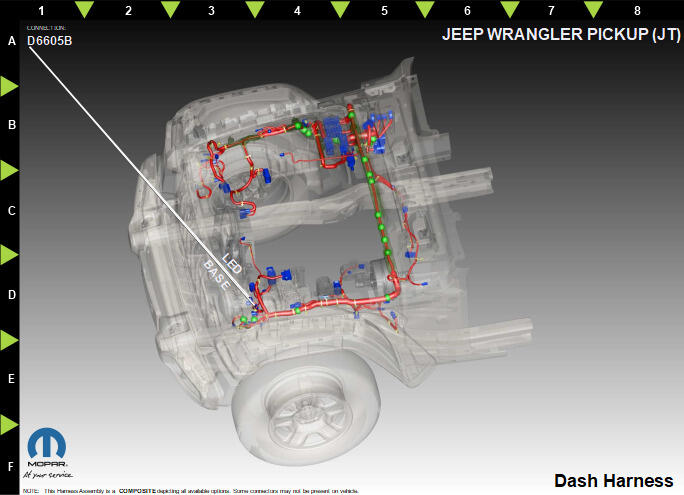

Fig 2: Lamp-Assembly-Left Front C2 Isometric View (LHD)

Courtesy of CHRYSLER

Fig 3: Lamp-Assembly-Left Front C2 Wire Insertion View (LHD)

Courtesy of CHRYSLER

Fig 4: Lamp-Assembly-Left Front C2 Component Location View (LHD)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F927	PK/YE	0.35	FUSED IGNITION	N/A
2	L133	WH/YE	0.35	HEADLAMP LEVEL MOTOR SIGNAL	BASE
2	L131	WH/GN	0.35	LEFT HEADLAMP LEVEL SENSOR SIGNAL	PREMIUM
3	Z905	BK	0.35	GROUND	N/A
