G909B (Standard) Connector End View (G909B)

Harness-Family: Dash

Color: NA

Gender: FEMALE

Part Number: MGT001BFLPH

Part Description: Not Available

Connector No: G909B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: G909b Connector End View (Standard)
GCWD1225470Courtesy of CHRYSLER
Fig 2: G909b Isometric View (Standard)
GCWD1225782Courtesy of CHRYSLER

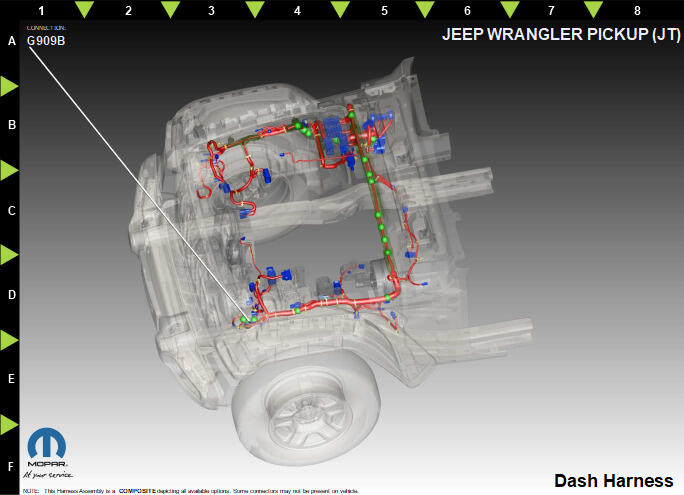

Fig 3: G909b Component Location View (Standard)
GCWD1319106Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z909 BK 2.0 GROUND N/A
1 Z909 BK/BU 0.75 GROUND N/A
1 Z909 BK/GN 1.0 GROUND N/A
