XY707A (Standard) Connector End View (Y707A)

Harness-Family: PICKUP_BED_LEFT

Color: BLACK

Gender: MALE

Part Number: 872-863-561

Part Description: Not Available

Connector No: Y707A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Xy707a Connector End View (Standard)
GCWD1237507Courtesy of CHRYSLER
Fig 2: Xy707a Isometric View (Standard)
GCWD1318350Courtesy of CHRYSLER
Fig 3: Xy707a Wire Insertion View (Standard)
GCWD1009666Courtesy of CHRYSLER

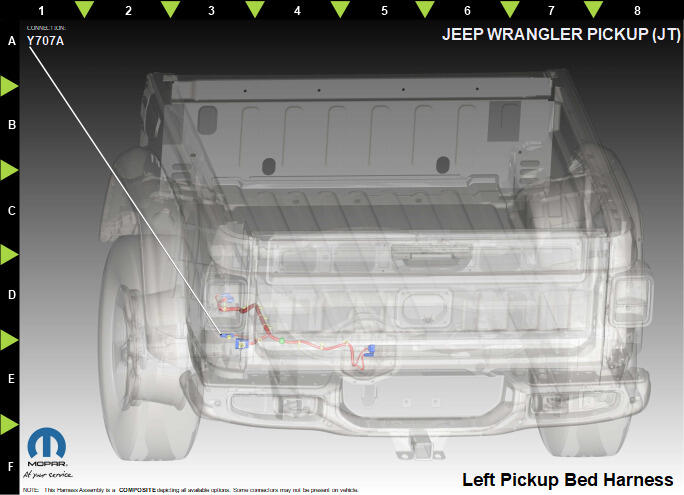

Fig 4: Xy707a Component Location View (Standard)
GCWD1318391Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 L19 BG/WH 0.75 CARGO LAMP DRIVER N/A
2 Z925 BK/GY 0.75 GROUND N/A
