XY430B (Standard) Connector End View (Y430B)

Harness-Family: Body

Color: BLACK

Gender: MALE

Part Number: 54200612

Part Description: Not Available

Connector No: Y430B

Option: Standard

Repair Kit Part Number: 05013988AA

Cavity Count: 6

Fig 1: Xy430b Connector End View (Standard)

GCWD1090096

Courtesy of CHRYSLER

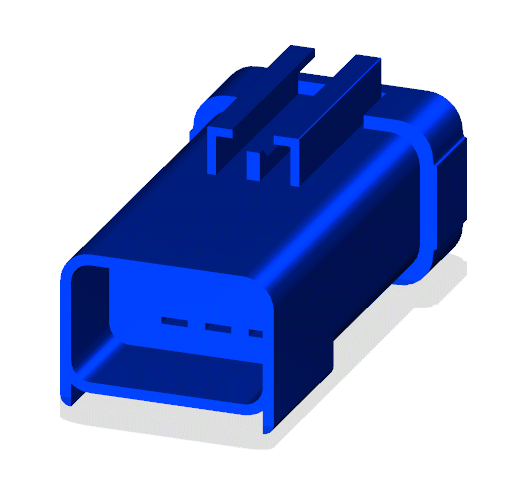

Fig 2: Xy430b Isometric View (Standard)

GCWD1082185

Courtesy of CHRYSLER

Fig 3: Xy430b Wire Insertion View (Standard)

GCWD1010073

Courtesy of CHRYSLER

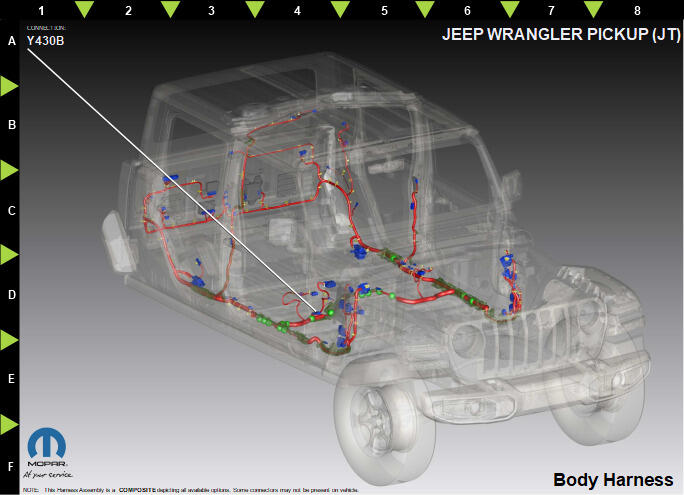

Fig 4: Xy430b Component Location View (Standard)

GCWD1318716

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Q111	BG/YE	2.0	DRIVER REAR WINDOW DRIVER (UP)	N/A
2	Q112	OG/BN	2.0	PASSENGER REAR WINDOW DRIVER (UP)	N/A
3	Q211	BG/BU	2.0	DRIVER REAR WINDOW DRIVER (DOWN)	N/A
4	Q212	OG/VT	2.0	PASSENGER REAR WINDOW DRIVER (DOWN)	N/A
5	N0	NA	0	NO CONNECT	N/A
6	Z917	BK	2.0	GROUND	N/A
