XY310A (Standard) Connector End View (X310A)

Harness-Family: IP

Color: WHITE

Gender: FEMALE

Part Number: 59Z163-003-B_59Z163-000/51

Part Description: Not Available

Connector No: X310A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Xy310a Connector End View (Standard)

Courtesy of CHRYSLER

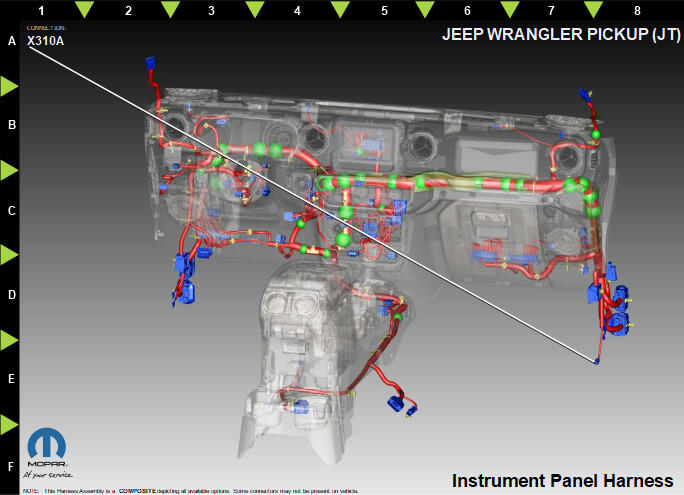

Fig 2: Xy310a Component Location View (Standard)

Courtesy of CHRYSLER
