Battery-Auxiliary (3.0L) Connector End View (D7415A)

Harness-Family: Battery

Color: NA

Gender: FEMALE

Part Number: R8728

Part Description: Not Available

Connector No: D7415A

Option: 3.0L

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: Battery-Auxiliary Connector End View (3.0L)
GCWD1225439Courtesy of CHRYSLER
Fig 2: Battery-Auxiliary Isometric View (3.0L)
GCWD1225644Courtesy of CHRYSLER

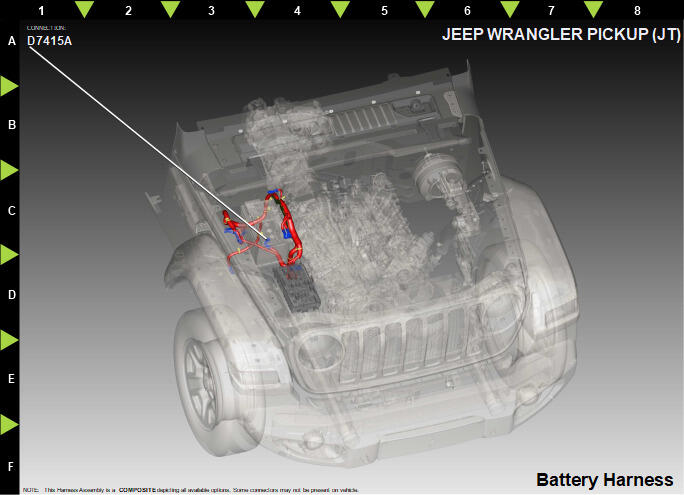

Fig 3: Battery-Auxiliary Component Location View (3.0L)
GCWD1318824Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A0 RD 20.0 FUSED B(+) N/A
