Drain And Fill - M210 Front Axle

DRAIN

Courtesy of CHRYSLER GROUP, LLC

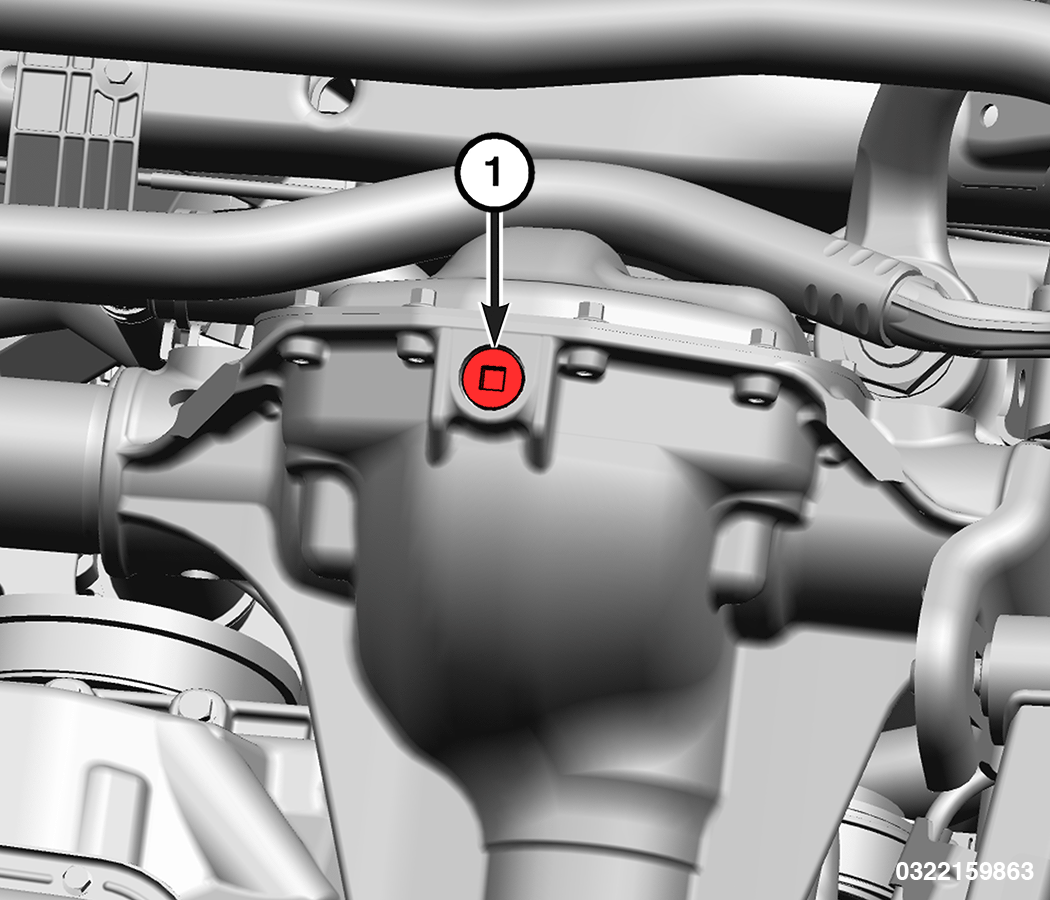

1. Remove differential drain plug (1).
2. Drain fluid into a suitable container and dispose of properly.
3. After all fluid is drained, clean sealing surface and install drain plug to. Refer to TORQUE SPECIFICATIONS .

FILL

Courtesy of CHRYSLER GROUP, LLC

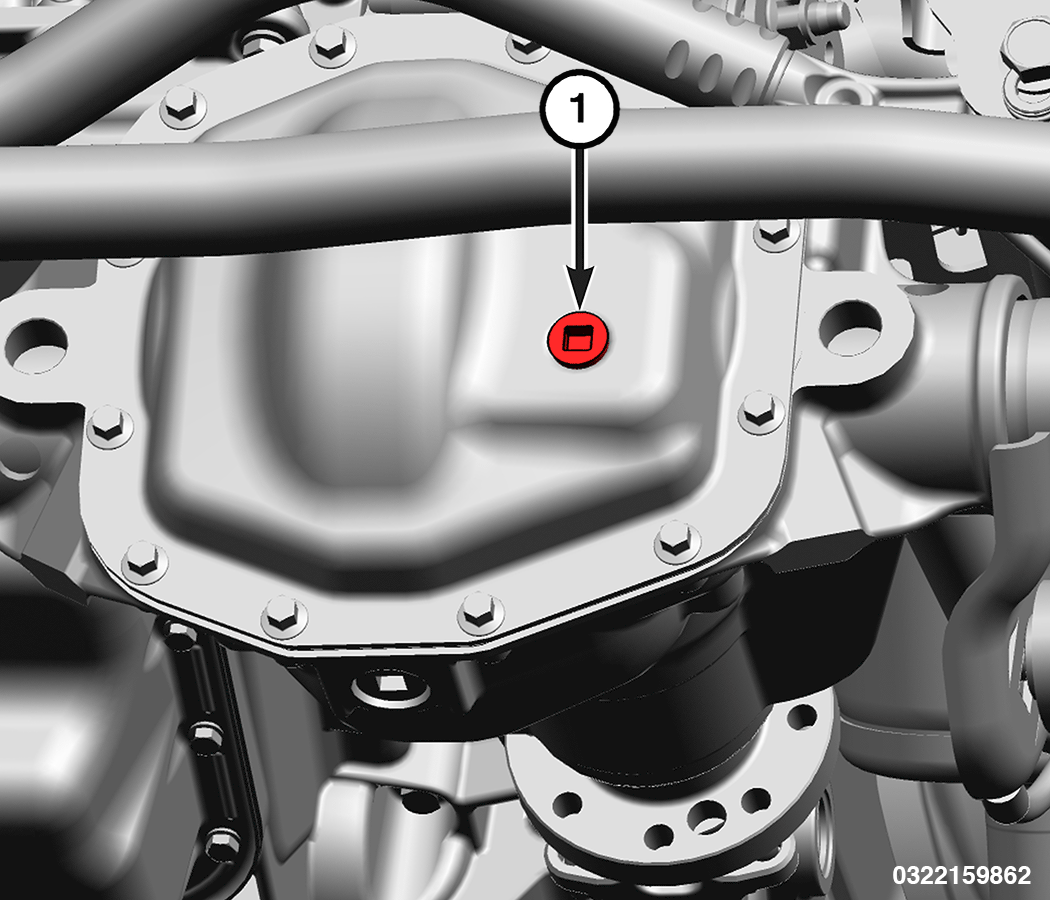

1. Remove fill plug (1).
2. With the axle level, fill carrier with lubricant. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
3. Install fill plug, and torque to. Refer to TORQUE SPECIFICATIONS .
