Removal And Installation - Front

Courtesy of CHRYSLER GROUP, LLC

REMOVAL

1. Remove the instrument panel center trim. Refer to PANEL, INSTRUMENT PANEL TRIM, REMOVAL AND INSTALLATION .

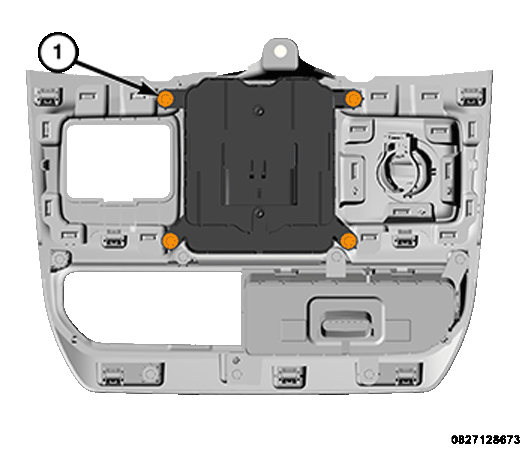

2. Remove the switch fasteners (1).

   Courtesy of CHRYSLER GROUP, LLC

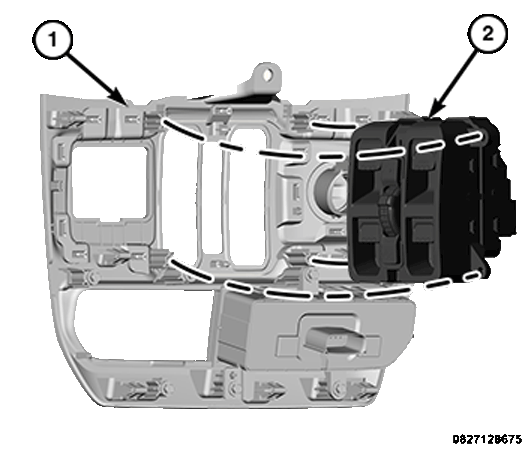

3. Separate and remove the switch assembly (2) from the trim (1).

INSTALLATION

1. Position the switch assembly (2) back onto the trim panel (1).

   Courtesy of CHRYSLER GROUP, LLC

2. Install the fasteners (1).
3. Install the instrument panel center trim. Refer to PANEL, INSTRUMENT PANEL TRIM, REMOVAL AND INSTALLATION .
