Exterior Mirrors: Notes
DESCRIPTION

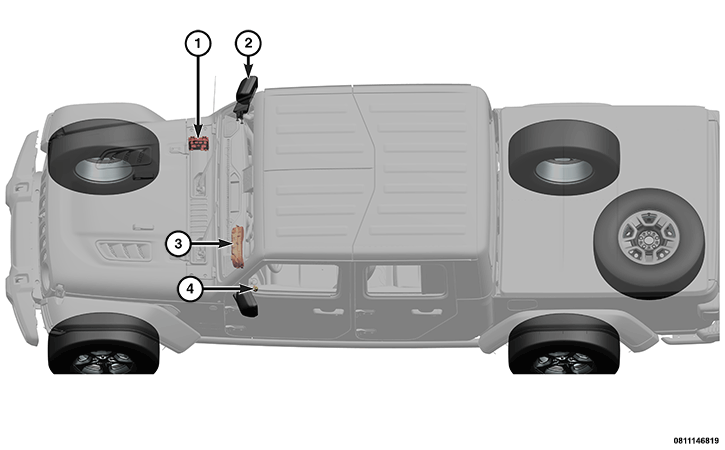

The interior and exterior power mirror systems are comprised of the following components:
| 1. | Refer to BODY CONTROL MODULE (BCM) . |
| 2. | Refer to POWER EXTERIOR REARVIEW MIRROR . |
| 3. | Refer to INSTRUMENT PANEL CLUSTER (IPC) . |
| 4. | Refer to POWER MIRROR SWITCH . |
On vehicles equipped with the Electrochromatic (EC) mirror, the EC feature automatically changes reflectance of the internal mirror to provide maximum night vision, while giving relief from glare by headlamps from the rear of the vehicle during night driving.
An ambient photo-light sensor indicates the light intensity in front of the driver and from behind the driver. The ambient photo-light sensor is located behind the glass on the face of the mirror and is not visible. There is no switch or hard button on the mirror to turn the EC function on or off. When the difference between the two light levels becomes too great (the light level received at the rear of the mirror is much higher than that at the front of the mirror), the mirror begins to darken. The mirror also monitors the backup lamp circuit, and will automatically disable its self-dimming feature whenever the transmission gear position is in the REVERSE.
OPERATION
Bus Communication
