4:1 Rock-TRAC: Notes

DISASSEMBLY

Courtesy of CHRYSLER GROUP, LLC

1 - Transfer Case Position Sensor

Remove the transfer case position sensor.

Courtesy of CHRYSLER GROUP, LLC

1 - Flange Holder Tool

2 - Bolts

3 - Flange
Install two bolts partially in the propeller shaft companion flange, 180° from each other.

Install the rectangular end of the (special tool #C-3281, Holder, Flange) over the bolts to hold the companion flange stationary and remove the nut holding the companion flange to the output shaft.

Courtesy of CHRYSLER GROUP, LLC

1 - Transfer Case

2 - Flange

3 - Flange Puller

Using the (special tool #C-452, Puller, Companion Flange) remove the companion flange from the assembly.
Using the same procedure as the companion flange, remove the main shaft output flange.
Remove the range lever to selector shaft bolt.
NOTE:
Be sure to note the orientation of the range lever (lever up or down) so that it may be re-installed in the same direction.

Courtesy of CHRYSLER GROUP, LLC

1 - Transfer Case Bolts
Remove the transfer case bolts.
Using an acceptable pry tool inserted in the slot at each end of the transfer case, loosen the transfer case halves to break the sealer bead.

Courtesy of CHRYSLER GROUP, LLC

1 - Wood Block

2 - Rear Transfer Case Half
Remove the case by disengaging the rear of the case from the alignment dowels.

Courtesy of CHRYSLER GROUP, LLC

1 - Oil Pump

2 - Oil Pump Pick-up Tube
Remove the oil pump and the oil pump pick-up tube.

Courtesy of CHRYSLER GROUP, LLC

1 - Snap Rings

2 - Chain and Sprockets
Remove and DISCARD the snap-rings from each sprocket and remove the chain and sprockets by lifting both sprockets off of the shafts equally.

Courtesy of CHRYSLER GROUP, LLC

1 - Detent Plug
Remove the detent plug with spring and plunger.

Courtesy of CHRYSLER GROUP, LLC

1 - Main Shaft

2 - Shift Fork
Remove the main shaft and the shift fork and rail from the transfer case.
Remove the output shaft.

Courtesy of CHRYSLER GROUP, LLC

1 - Snap Ring

2 - Synchronizer

Remove and DISCARD the snap ring and remove the synchronizer from the main shaft.

NOTE:

Grasp the synchronizer at both the top and bottom when installing or removing the synchronizer. Failure to hold the synchronizer together may allow the outer ring of the synchronizer to drop, allowing the small springs, ball bearings, and slides to fall out and scatter.

Courtesy of CHRYSLER GROUP, LLC

1 - Shift Rail

2 - Range Fork

3 - Input Gear

Remove the range fork assembly with the input gear.

Courtesy of CHRYSLER GROUP, LLC

1 - SECTOR SUPPORT

2 - FRONT CASE

3 - SECTOR SHAFT

Remove the shift sector support.

Courtesy of CHRYSLER GROUP, LLC

1 - SHIFT SECTOR
Remove shift sector.

Courtesy of CHRYSLER GROUP, LLC

1 - Extension Housing Bolts
Remove the extension housing bolts.

Courtesy of CHRYSLER GROUP, LLC

1 - Extension Housing
Remove the extension housing from the case.

Courtesy of CHRYSLER GROUP, LLC

1 - Annulus Ring Gear

2 - Case
Remove the annulus ring gear from the case.
Clean the case halves.

ASSEMBLY

Clean both case halves and mating surfaces using brake cleaner or similar. Make sure all of the old sealer is removed and the surface is free of any oils or debris.

Replace any bearings in the case halves that are spalled, damaged, or have been subjected to highly contaminated fluid (metal contamination from catastrophic failure).

Courtesy of CHRYSLER GROUP, LLC

1 - Output Flange

2 - Synchronizer

3 - Main Shaft

Using the output flange as a stand, install the synchronizer onto the main shaft.

Courtesy of CHRYSLER GROUP, LLC

1 - Snap Ring

2 - Synchronizer
Install the NEW snap ring for the synchronizer onto the main shaft.

Courtesy of CHRYSLER GROUP, LLC

1 - Annulus Ring Gear

2 - Case
Install the annulus ring gear into the case.
Clean the extension housing mating surfaces with brake cleaner or equivalent and wipe with a lint free shop cloth.
Place a 1/4" bead of Mopar® RTV sealant around the extension housing.

Courtesy of CHRYSLER GROUP, LLC

1 - Extension Housing
Install the extension housing into the case.

Courtesy of CHRYSLER GROUP, LLC

1 - Extension Housing Bolts

Install the extension housing bolts in a criss-cross pattern to the proper torque specification.

Courtesy of CHRYSLER GROUP, LLC

1 - Shift Rail

2 - Range Fork

3 - Input Gear

Install the range fork, shift rail and the input gear into the case.

Courtesy of CHRYSLER GROUP, LLC

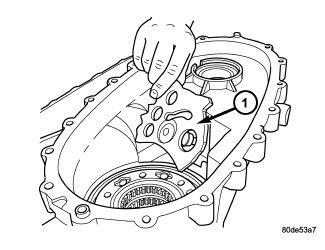

1 - SHIFT SECTOR

Lubricate sector shaft with transmission fluid and install shift sector in case. Position slot in sector so it will be aligned with shift fork pin when shift forks are installed.

Courtesy of CHRYSLER GROUP, LLC

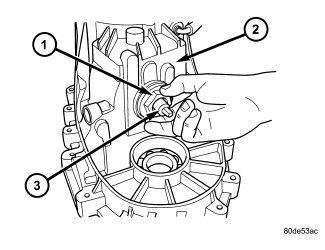

1 - SECTOR SUPPORT

2 - FRONT CASE

3 - SECTOR SHAFT

Install the shift sector support.

Courtesy of CHRYSLER GROUP, LLC

1 - Snap Rings

2 - Chain and Sprockets
Install the output shaft into the case and install the chain and sprockets with the blue link facing upward.

Courtesy of CHRYSLER GROUP, LLC

1 - Snap Rings
Install the snap rings on both sprockets. If the snap rings are over extended or loose, replace them with NEW snap rings.

Courtesy of CHRYSLER GROUP, LLC

1 - Oil Pump

2 - Oil Pump Pick-up Tube
Install the oil pump and pick up tube. Verify the pick up tube is seated in the slot in the case half.
Wipe the case half mating surfaces and place a 1/4" bead of Mopar® sealer on one case half.

Courtesy of CHRYSLER GROUP, LLC

1 - Wood Block

2 - Rear Transfer Case Half
Install the case halves together, ensuring they are fully seated. Tighten the bolts in a criss-cross pattern to the proper torque specification.

Courtesy of CHRYSLER GROUP, LLC

1 - Rear Output Flange Nut

2 - Rear Output Flange
Install the front and rear output flanges and the flange nuts. Tighten the nuts to the proper torque specification.

Courtesy of CHRYSLER GROUP, LLC

1 - Transfer Case Position Sensor
Install the transfer case position sensor.
NOTE:
Inspect the transfer case position sensor O-ring for damage before installing the transfer case position sensor.
Install the transfer case. Refer to REMOVAL AND INSTALLATION .

TORQUE SPECIFICATIONS
