Motor-Window-Left Rear (Standard) Connector End View (D3042A)

Harness-Family: Door_Rear_Left

Color: BLACK

Gender: FEMALE

Part Number: 54200206

Part Description: Not Available

Connector No: D3042A

Option: Standard

Repair Kit Part Number: 05017117AA

Cavity Count: 2

Fig 1: Motor-Window-Left Rear Connector End View (Standard)
GCWD1006292Courtesy of CHRYSLER
Fig 2: Motor-Window-Left Rear Isometric View (Standard)
GCWD1088850Courtesy of CHRYSLER
Fig 3: Motor-Window-Left Rear Wire Insertion View (Standard)
GCWD1007282Courtesy of CHRYSLER

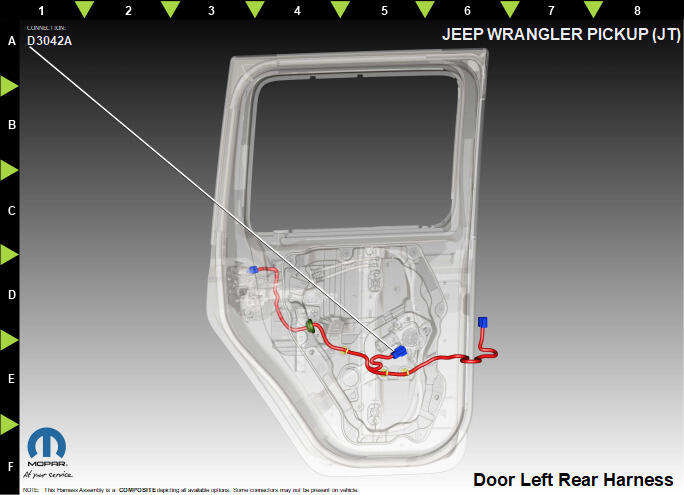

Fig 4: Motor-Window-Left Rear Component Location View (Standard)
GCWD1318860Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Q111 BG/YE 2.0 DRIVER REAR WINDOW DRIVER (UP) N/A
2 Q211 BG/BU 2.0 DRIVER REAR WINDOW DRIVER (DOWN) N/A
