Lamp-Vanity-Right (Standard) Connector End View (D4594A)

Harness-Family: Mirror

Color: BLACK

Gender: MALE

Part Number: 872-658-521

Part Description: Not Available

Connector No: D4594A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Lamp-Vanity-Right Connector End View (Standard)

Courtesy of CHRYSLER

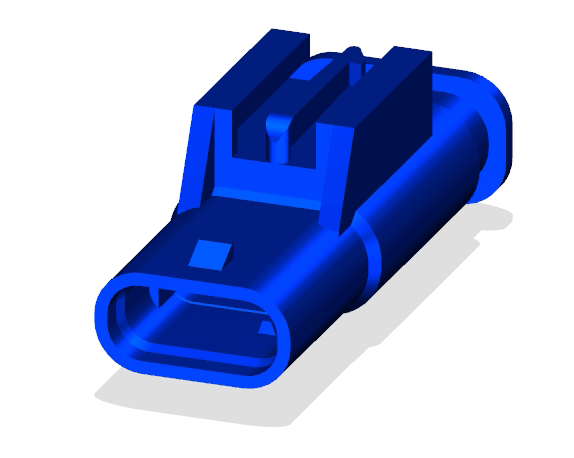

Fig 2: Lamp-Vanity-Right Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Lamp-Vanity-Right Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Lamp-Vanity-Right Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	M27	YE/BU	0.50	READING LAMPS DRIVER	N/A
2	Z910	BK	0.50	GROUND	N/A
3	N0	NA	0	NO CONNECT	N/A
