XY750A (Standard) Connector End View (Y750A)

Harness-Family: Body

Color: LIGHT GRAY

Gender: MALE

Part Number: 7282-6448-40

Part Description: KAIZEN YESC SUB ASSEMBLY (6P 1.5+2P 2.8)

Connector No: Y750A

Option: Standard

Repair Kit Part Number: 68490925AA

Cavity Count: 8

Fig 1: Xy750a Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Xy750a Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Xy750a Wire Insertion View (Standard)

Courtesy of CHRYSLER

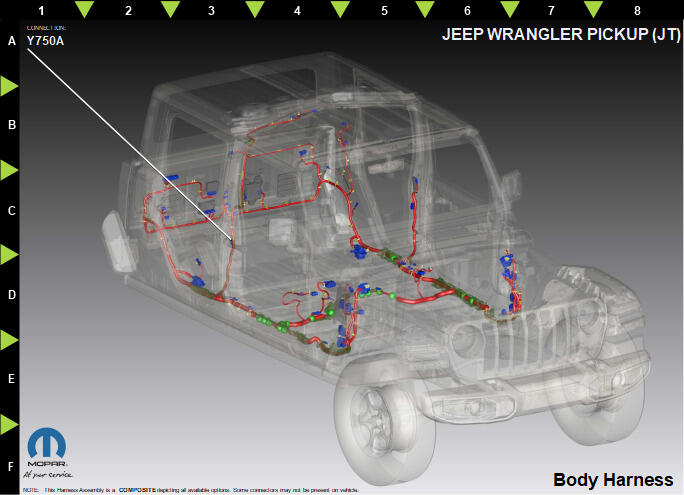

Fig 4: Xy750a Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Q112	OG/BN	2.0	PASSENGER REAR WINDOW DRIVER (UP)	N/A
2	P292	VT/GN	0.75	DOOR UNLOCK CONTROL	N/A
3	P777	GN/DG	0.75	DOOR LOCK CONTROL	N/A
4	Q212	OG/VT	2.0	PASSENGER REAR WINDOW DRIVER (DOWN)	N/A
5	N0	NA	0	NO CONNECT	N/A
6	G76	VT/YE	0.35	RIGHT REAR DOOR AJAR SWITCH SENSE	N/A
7	P372	BG/OG	0.35	DOOR LOCK SW RTN PASS	N/A
8	N0	NA	0	NO CONNECT	N/A
