XY670A (Standard) Connector End View (Y670A)

Harness-Family: Door_Pass

Color: BLACK

Gender: FEMALE

Part Number: 33472-1206

Part Description: 1.5MM STANDARD CONNECTOR, 2 ROW HOUSING

Connector No: Y670A

Option: Standard

Repair Kit Part Number: 68364272AA

Cavity Count: 12

Fig 1: Xy670a Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Xy670a Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Xy670a Wire Insertion View (Standard)

Courtesy of CHRYSLER

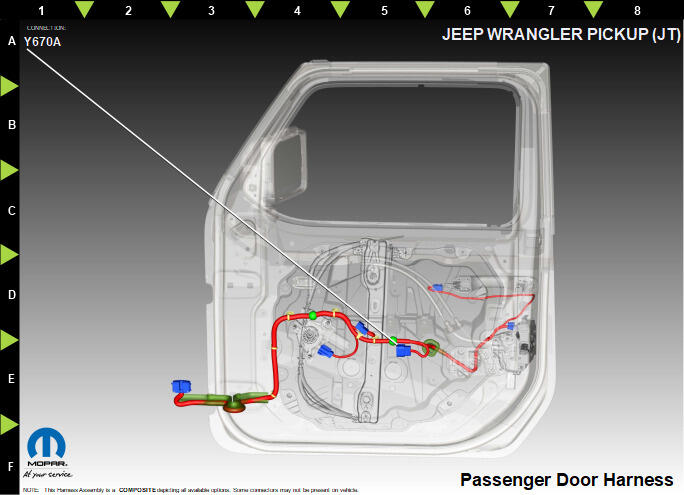

Fig 4: Xy670a Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	E12	OG/GY	0.75	PANEL LAMPS DRIVER	N/A
5	M5	WH/GN	0.75	AMBIENT LIGHTING CONTROL	N/A
6	N0	NA	0	NO CONNECT	N/A
7	Z910	BK	0.75	GROUND	N/A
8	N0	NA	0	NO CONNECT	N/A
9	P372	BG/OG	0.35	DOOR LOCK SW RTN PASS	N/A
10	G160	VT/GN	0.75	RIGHT DOOR LOCK SWITCH STATUS	N/A
11	N0	NA	0	NO CONNECT	N/A
12	N0	NA	0	NO CONNECT	N/A
