XY411A (Standard) Connector End View (X411A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 33472-1606

Part Description: Not Available

Connector No: X411A

Option: Standard

Repair Kit Part Number: 68202814AA

Cavity Count: 16

Fig 1: Xy411a Connector End View (Standard)

GCWD1252414

Courtesy of CHRYSLER

Fig 2: Xy411a Isometric View (Standard)

GCWD1310206

Courtesy of CHRYSLER

Fig 3: Xy411a Wire Insertion View (Standard)

GCWD1010281

Courtesy of CHRYSLER

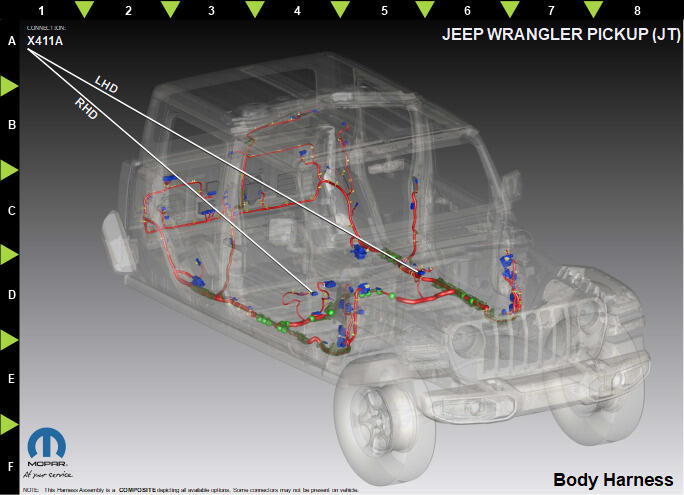

Fig 4: Xy411a Component Location View (Standard)

GCWD1318816

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F503	OG/PK	0.75	DRIVER SEAT CUSHION SUPPLY	N/A
2	F507	GN/PK	0.75	DRIVER SEAT BACK SUPPLY	N/A
3	F915	PK	0.35	FUSED IGNITION RUN/START	N/A
4	N0	NA	0	NO CONNECT	N/A
5	R57	GN/GY	0.75	DRIVER SEAT BELT BUCKLE SWITCH SENSE	N/A
6	P413	OG/GY	0.35	DRIVER FRONT HEATED SEAT CUSHION TEMP SENSE	N/A
7	P415	OG/VT	0.35	DRIVER FRONT HEATED SEAT BACK TEMP SENSE	N/A
8	P419	OG/BK	0.35	SENSOR RETURN	N/A
9	N0	NA	0	NO CONNECT	N/A
10	R263	BU/VT	0.75	DRIVER SEAT POSITION SENSOR VOLTAGE	N/A
11	R729	GN/BK	0.75	DRIVER SEAT DETECTION RETURN	N/A
12	N0	NA	0	NO CONNECT	N/A
13	D43	OG	0.35	CAN C (+)	N/A
14	D44	YE	0.35	CAN C (-)	N/A
15	Z920	BK/BU	0.35	GROUND	N/A
16	Z917	BK/BU	1.0	GROUND	N/A
