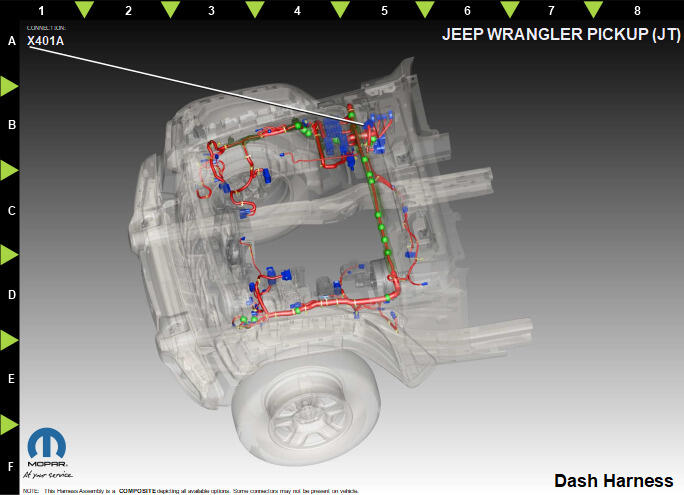

XY401A (Standard) Connector End View (X401A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 7289-7293-30

Part Description: Not Available

Connector No: X401A

Option: Standard

Repair Kit Part Number: 68499393AA

Cavity Count: 59

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	F928	PK/YE	0.35	IGNITION RUN OUTPUT	N/A
3	L144	BG/OG	0.75	RIGHT SIDE MARKER CONTROL	N/A
4	L145	WH/OG	0.75	LEFT SIDE MARKER CONTROL	N/A
5	T314	YE/BU	0.35	TRANSFER CASE RANGE POSITION SIGNAL	N/A
6	T824	YE/DB	0.35	TRS PARK SIGNAL	N/A
7	T524	YE/GN	0.75	FRONT LOCKER RETURN	N/A
8	F985	PK/YE	0.50	FUSED IGNITION SWITCH OUTPUT (RUN-ACC)	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
11	N0	NA	0	NO CONNECT	N/A
12	K854	VT/BN	0.35	5 VOLT SUPPLY	N/A
13	K400	BN/VT	0.35	APP SENSOR GROUND 2	N/A
14	T17	YE/VT	0.35	CLUTCH INTERLOCK START CONTROL	N/A
15	T308	YE/BU	0.35	TRANSFER CASE ENCODER SIG 1	N/A
16	T307	YE/DB	0.35	TRANSFER CASE ENCODER SIG 0	N/A
17	P307	GN/GY	0.35	ACCESSORY DELAY RELAY CONTROL	N/A
18	K977	BN/WH	0.35	MODE SELECT	N/A
19	K23	BN/WH	0.35	APP SIGNAL 1	N/A
20	K852	GY/BU	0.35	5 VOLT SUPPLY	N/A
21	K167	BN/YE	0.35	APP SENSOR GROUND 1	N/A
22	L76	WH/BN	1.0	TRAILER TOW RELAY OUTPUT	N/A
23	N0	NA	0	NO CONNECT	N/A
24	K29	WH/BN	0.35	APP SIGNAL 2	N/A
25	B237	DG/YE	0.35	PEDAL TRAVEL SNSR FEED	N/A
26	P305	GN/BU	0.35	ACCESSORY DELAY RELAY CONTROL	N/A
27	L657	WH/GN	0.35	TRAILER TOW TAIL LAMP RELAY CTRL	N/A
28	B937	DG/OG	0.35	BRAKE PEDAL TRAVEL SENSOR RETURN	N/A
29	B137	DG/BN	0.35	PEDAL TRAVEL SNSR SIG	N/A
30	T523	YE/BG	0.35	LOCKER SENSOR RETURN	N/A
31	T522	YE/BU	0.35	FRONT LOCKER SWITCH SENSE	N/A
32	N0	NA	0	NO CONNECT	N/A
33	F923	PK/YE	0.35	RUN RELAY CONTROL	N/A
34	F916	PK/BU	0.50	FUSED IGNITION RUN/START	N/A
35	N0	NA	0	NO CONNECT	N/A
36	K504	BN	0.35	DRIVETRAIN 5 VOLT SUPPLY	N/A
37	K594	BN/GN	0.35	DRIVETRAIN SENSOR RETURN	N/A
38	K619	BN/OG	0.35	IGNITION RUN CONTROL OUTPUT	N/A
39	A230	RD/BN	0.50	FUSED B(+)	N/A
40	T315	YE/BN	2.5	SHIFT MOTOR CONTROL A	N/A
41	C902	DB	0.50	ELECTRIC WINDSHIELD WIPER DE-ICER CONTROL	N/A
42	L551	BG/BN	0.35	LEFT FRONT LIGHTING FAULT SENSE	N/A
43	L552	BG/OG	0.35	RIGHT FRONT LIGHTING FAULT SENSE	N/A
44	L655	WH/OG	0.35	LEFT REAR TURN SIGNAL CONTROL	N/A
45	L656	WH/DG	0.35	RIGHT REAR TURN SIGNAL CONTROL	N/A
46	L111	WH/OG	1.0	TRAILER TOW BACKUP LAMP FEED	N/A
47	L673	YE	1.0	LEFT REAR STOP/TURN SIGNAL FEED	N/A
48	L658	WH/BN	0.35	TRAILER TOW BACKUP LAMP RELAY CONTROL	N/A
49	T317	YE/BG	0.75	STEP MOTOR CONTROL D	N/A
50	T12	DG/YE	0.35	CLUTCH INTERLOCK SIGNAL	N/A
51	T301	DG/YE	0.75	SWITCHED BATTERY SOLENOID SUPPLY	N/A
52	F915	PK	0.35	FUSED IGNITION RUN/START	N/A
53	L674	GN	1.0	RIGHT REAR STOP/TURN SIGNAL FEED	N/A
54	T316	YE/GY	2.5	SHIFT MOTOR CONTROL B	N/A
55	C15	DB/WH	2.5	REAR WINDOW DEFOGGER CONTROL OUTPUT	N/A
56	N0	NA	0	NO CONNECT	N/A
57	A100	RD/VT	2.0	FUSED B(+)	N/A
58	A194	RD/GY	3.0	FUSED B(+)	N/A
59	F946	PK/GN	0.75	FUSED IGNITION RUN/START CONTROL OUTPUT	N/A
