XY240A (Standard) Connector End View (X240A)

Harness-Family: Jumper_Washer

Color: BLACK

Gender: FEMALE

Part Number: 10092979

Part Description: Not Available

Connector No: X240A

Option: Standard

Repair Kit Part Number: 68493745AA

Cavity Count: 4

Fig 1: Xy240a Connector End View (Standard)

GCWD1079782

Courtesy of CHRYSLER

Fig 2: Xy240a Isometric View (Standard)

GCWD1315114

Courtesy of CHRYSLER

Fig 3: Xy240a Wire Insertion View (Standard)

GCWD1010030

Courtesy of CHRYSLER

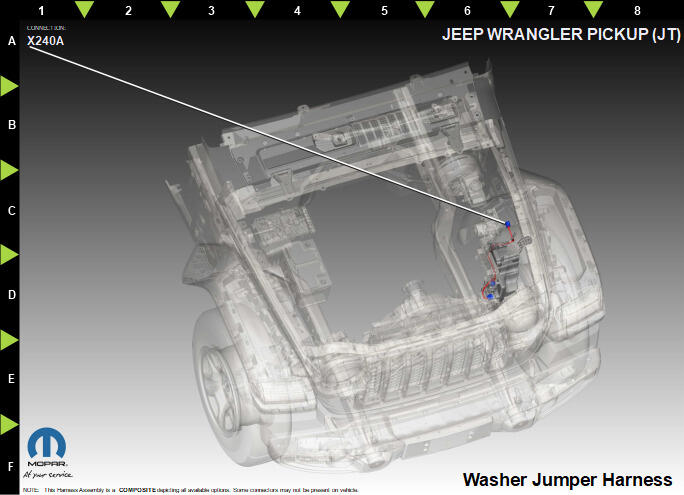

Fig 4: Xy240a Component Location View (Standard)

GCWD1318547

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	W1	BN/BG	0.80	WASHER FLUID LEVEL SWITCH SENSE	N/A
2	W39	BN/VT	0.80	FRONT CAMERA WASHER PUMP MOTOR CONTROL	N/A
3	W11	BN/BG	0.80	LOW WASH SW RTN 1	N/A
4	W18	BN	0.80	FRONT WASHER PUMP MOTOR CONTROL	N/A
