XY203A (Standard) Connector End View (Y203A)

Harness-Family: Engine_Diesel1

Color: BROWN

Gender: MALE

Part Number: 7286-1399-80

Part Description: Not Available

Connector No: Y203A

Option: Standard

Repair Kit Part Number: 68585983AA

Cavity Count: 2

Fig 1: Xy203a Connector End View (Standard)
GCWD1014715Courtesy of CHRYSLER

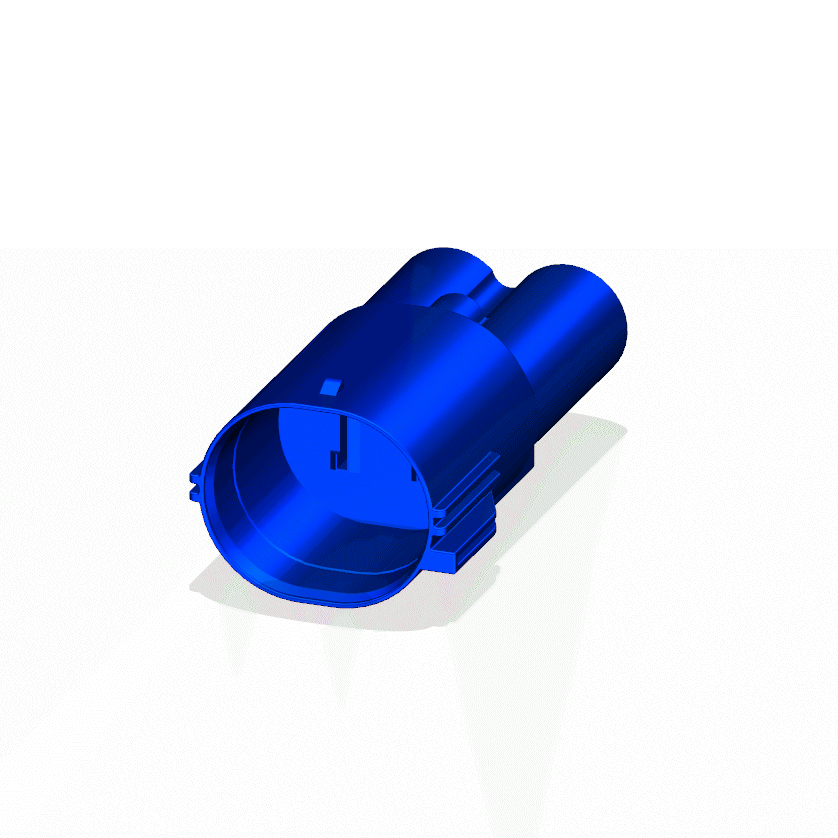

Fig 2: Xy203a Isometric View (Standard)
GCWD1014711Courtesy of CHRYSLER
Fig 3: Xy203a Wire Insertion View (Standard)
GCWD1007449Courtesy of CHRYSLER

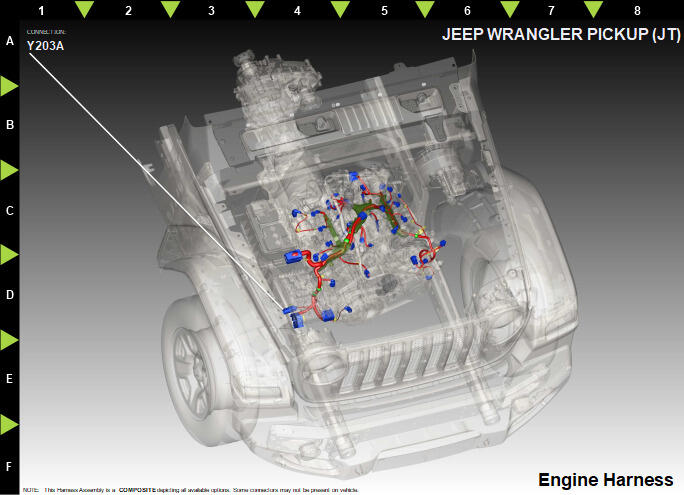

Fig 4: Xy203a Component Location View (Standard)
GCWD1318945Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A29 GY 6.0 FUSED B(+) N/A
