Motor-Lock-Tailgate (Standard) Connector End View (D2793A)

Harness-Family: Tailgate

Color: BLACK

Gender: FEMALE

Part Number: 872-857-571

Part Description: Not Available

Connector No: D2793A

Option: Standard

Repair Kit Part Number: 68137868AA

Cavity Count: 2

Fig 1: Motor-Lock-Tailgate Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Motor-Lock-Tailgate Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Motor-Lock-Tailgate Wire Insertion View (Standard)

Courtesy of CHRYSLER

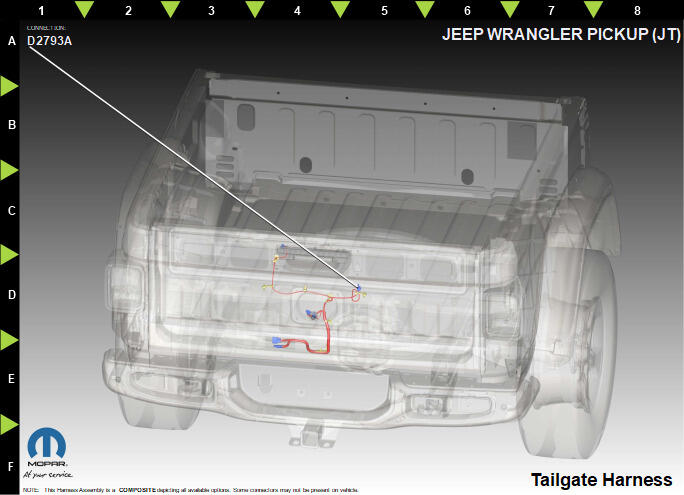

Fig 4: Motor-Lock-Tailgate Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P220	GN/WH	0.50	TAILGATE UNLOCK	N/A
2	P221	GN/BG	0.50	TAILGATE LOCK	N/A
