Description And Operation: Notes
DESCRIPTION

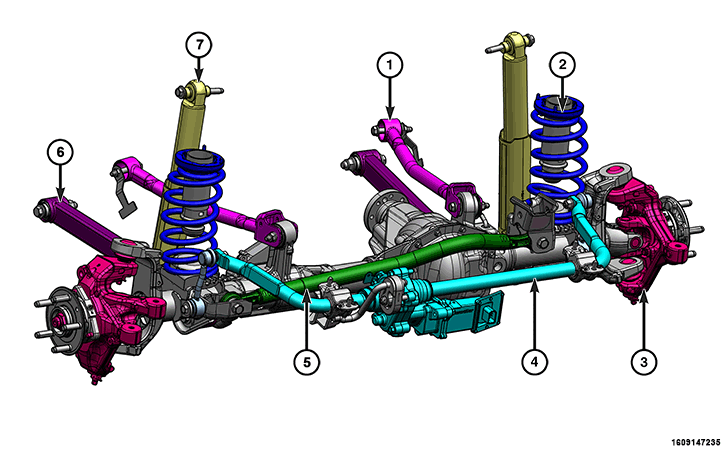

The front suspension system consists of the following major components:
COMPONENT INDEX
| 1. | Refer to UPPER CONTROL ARMS . |
| 2. | Refer to COIL SPRINGS . |
| 3. | Refer to STEERING KNUCKLES . |
| 4. | Refer to STABILIZER BAR OR ACTIVE STABILIZER BAR SYSTEM (ASBS) . |
| 5. | Refer to TRACK BAR . |
| 6. | Refer to LOWER CONTROL ARMS . |
| 7. | Refer to SHOCK ABSORBER . |
CAUTION:
Suspension components with rubber/urethane bushings (except stabilizer bar to frame and stabilizer bar to link attachments) should be tightened with the full weight of the vehicle at curb height. It is important to have the springs supporting the weight of the vehicle when the fasteners are torqued. If springs are not at their curb height, vehicle ride comfort could be affected and premature bushing wear may occur.
OPERATION
