2.4L Multi Air: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
2. Drain the cooling system. Refer to STANDARD PROCEDURE .
3. Loosen the clamp and remove the degas hose (1) from the pressurized coolant bottle.
4. Release the clip remove the coolant hose (2) from the pressurized coolant bottle.

   Courtesy of CHRYSLER GROUP, LLC

5. Lift the clips (1a) and slide the pressurized coolant bottle to the left and disengage the retaining clips (1b).

   Courtesy of CHRYSLER GROUP, LLC

6. Squeeze the clips (1a) and remove pressurized coolant bottle (1b).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

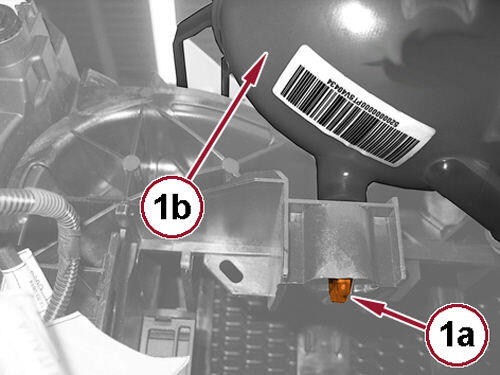

1. Install the pressurized coolant bottle (1b) and engage the retaining clips (1a).

   Courtesy of CHRYSLER GROUP, LLC

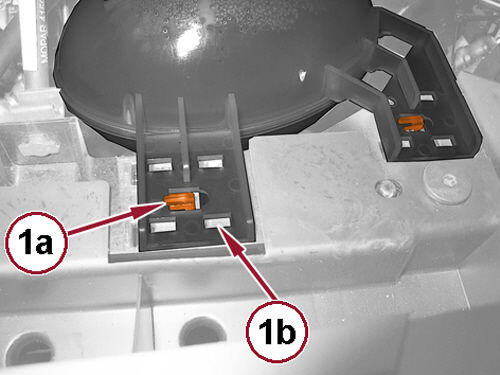

2. Slide the pressurized coolant bottle to the right and engage the retaining clips (1b). Push the clip (1a) to lock.

   Courtesy of CHRYSLER GROUP, LLC

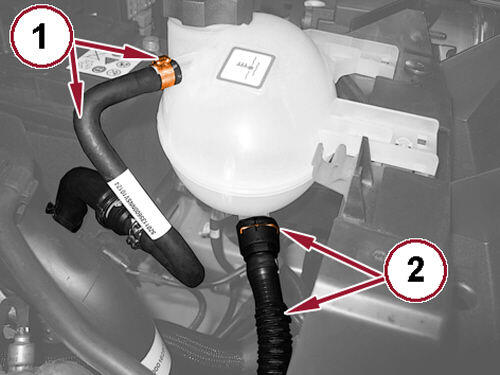

3. Install the coolant hose (2) onto the pressurized coolant bottle and engage the clip.
4. Install the degas hose (1) onto the pressurized coolant bottle and tighten the clamp.
5. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
6. Fill the cooling system. Refer to STANDARD PROCEDURE .
7. Run the engine until it reaches normal operating temperature. Check cooling system for leaks and correct fluid level. Refer to STANDARD PROCEDURE .
