Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

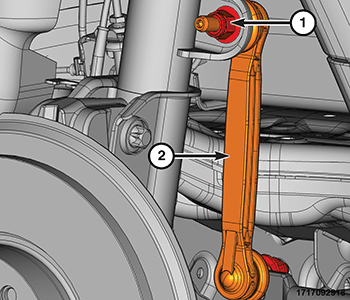

1. Install the stabilizer bar link (2) upper stud in the strut, install two NEW  nuts (1) on the stabilizer bar link studs.
2. Tighten both nuts to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
3. Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
4. Remove the support and lower the vehicle.
