2.4L 4X4

REMOVAL

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the right front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
  3. Remove the right front splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
  4. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  5. Remove the right half-shaft. Refer to REMOVAL AND INSTALLATION or REMOVAL AND INSTALLATION .

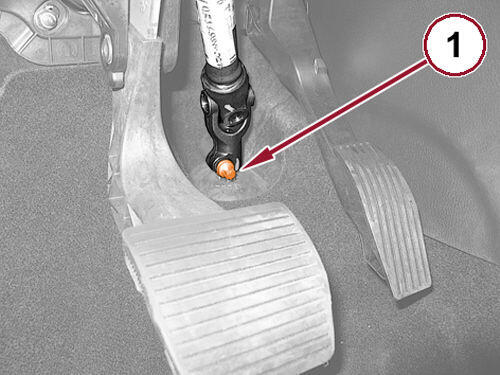

    GC0163431Courtesy of CHRYSLER GROUP, LLC
  6. Remove the bolt (1) and the steering column shaft from the steering gear.

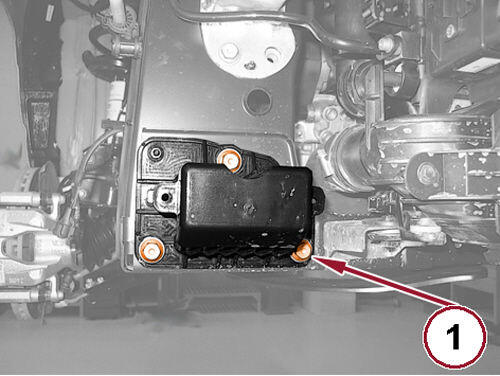

    GC0163764Courtesy of CHRYSLER GROUP, LLC
  7. Remove the bolts (1) securing the right lower load beam extension to the front end.
  8. Remove the front-end reinforcement bolts.
  9. On the left side, do the same for the removal of the reinforcement of the front-end and the strut.

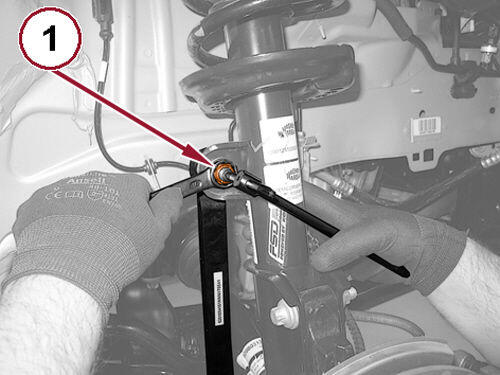

    GC0163531Courtesy of CHRYSLER GROUP, LLC
  10. Holding the stem of the link, remove the nut (1) and the right stabilizer bar link from the shock.
  11. On the left side, proceed similarly to disconnect the stabilizer bar link.
    GC0163955Courtesy of CHRYSLER GROUP, LLC
  12. Remove the rear exhaust pipe bracket bolts (1).
  13. Loosen the exhaust clamp nut (2).
    GC0163806Courtesy of CHRYSLER GROUP, LLC
  14. Remove the front exhaust pipe support bracket bolts (1).
  15. Remove the exhaust pipe support bracket bolt (2).
  16. Remove the nuts (3) and disengage the exhaust pipe from the catalytic converter.
  17. Remove the gasket.
    GC0164564Courtesy of CHRYSLER GROUP, LLC
  18. Place a suitable hydraulic lift (1) under the transmission as shown in the figure.
    GC0163460Courtesy of CHRYSLER GROUP, LLC
  19. Remove the rear engine mount isolator to bracket bolt (1).
  20. Place a suitable hydraulic lift under the front suspension crossmember.
  21. Remove the rear front suspension crossmember bolts securing the of the to the body.

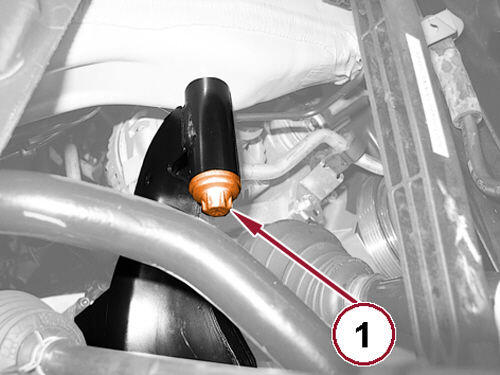

    GC0162944Courtesy of CHRYSLER GROUP, LLC
  22. Remove the left and right side front suspension crossmember bolts (1).
    GC0165442Courtesy of CHRYSLER GROUP, LLC
  23. Using the hydraulic lift, lower the front suspension crossmember and remove the exhaust pipe (1) with the flexible joint.

INSTALLATION

  1. Install the exhaust pipe with flexible joint and connect it to the exhaust muffler.

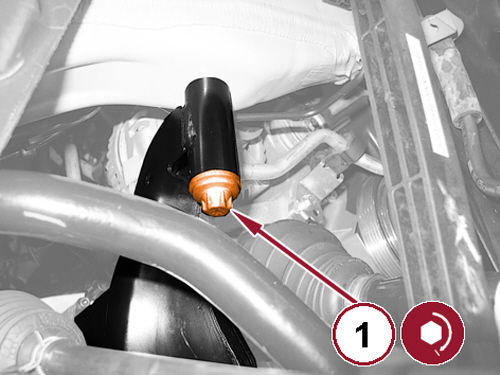

    GC0163397Courtesy of CHRYSLER GROUP, LLC
  2. Using a hydraulic lift put into place the front suspension crossmember and tighten the left and right side bolts (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Install the suspension crossmember rear bolts and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  4. Remove the hydraulic lift.
    GC0164461Courtesy of CHRYSLER GROUP, LLC
  5. Install the rear engine mount isolator to bracket bolt (1) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  6. Remove the hydraulic lift.
    GC0164784Courtesy of CHRYSLER GROUP, LLC
  7. Using a NEW  gasket, install the exhaust pipe to the catalytic converter and tighten the NEW  nuts (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  8. Install the front exhaust pipe support bracket bolts (2) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  9. Install the exhaust pipe support bracket bolt (3) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0163051Courtesy of CHRYSLER GROUP, LLC
  10. Install the rear exhaust pipe support bracket bolt and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  11. Tighten the exhaust clamp nut (2) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

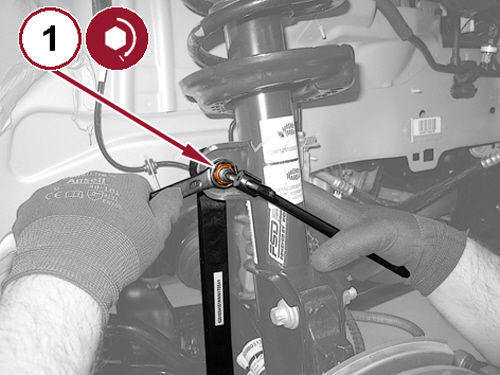

    GC0164556Courtesy of CHRYSLER GROUP, LLC
  12. Install the right stabilizer link to shock and tighten the nut (1) to the proper torque specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  13. On the left side, do the same to install the stabilizer bar link.
  14. Install the front-end reinforcement and tighten the bolts to the proper torque specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .

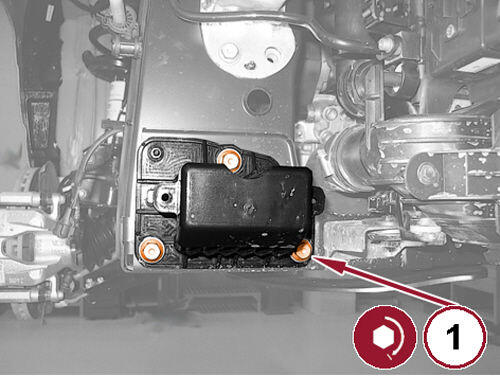

    GC0163146Courtesy of CHRYSLER GROUP, LLC
  15. Install the right load beam extension bolts (1) and tighten to the proper torque specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  16. On the left side, proceed similarly for installing the load beam extension.

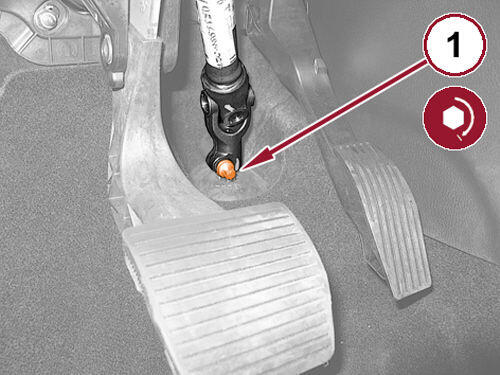

    GC0163169Courtesy of CHRYSLER GROUP, LLC
  17. Install the steering column shaft onto the steering gear and tighten the NEW  bolt (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  18. Install the right half shaft. Refer to REMOVAL AND INSTALLATION or REMOVAL AND INSTALLATION .
  19. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  20. Install the right front splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
  21. Install the right front wheel and tire. Refer to REMOVAL AND INSTALLATION .
  22. Remove the support and lower the vehicle.
