Removal And Installation: 1.4L: Removal

Disconnect and isolate the negative battery cable.
Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION or COVER, ENGINE, REMOVAL AND INSTALLATION or COVER, ENGINE, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

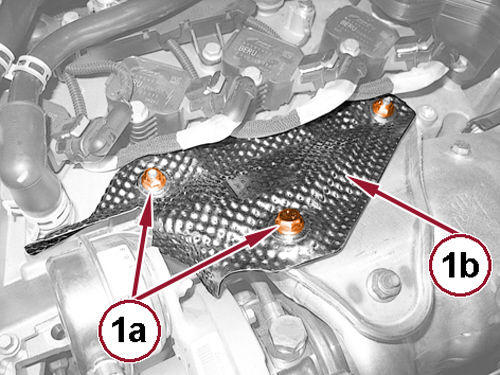

Remove the bolts (1a) and the heat shield (1b).

Courtesy of CHRYSLER GROUP, LLC

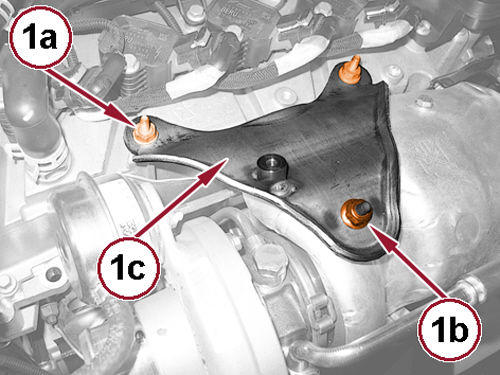

Remove the bolts (1a), the nut (1b) and the turbocharger support bracket (1c).

Courtesy of CHRYSLER GROUP, LLC

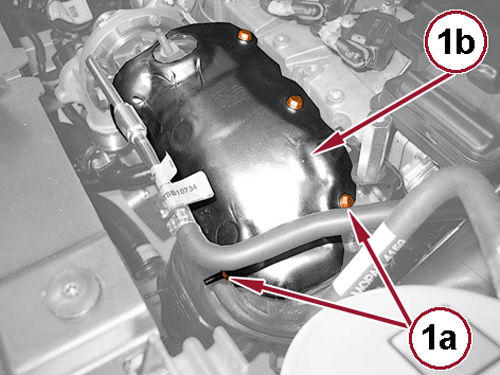

Remove the bolts (1a) and the turbocharger heat shield (1b).

Courtesy of CHRYSLER GROUP, LLC

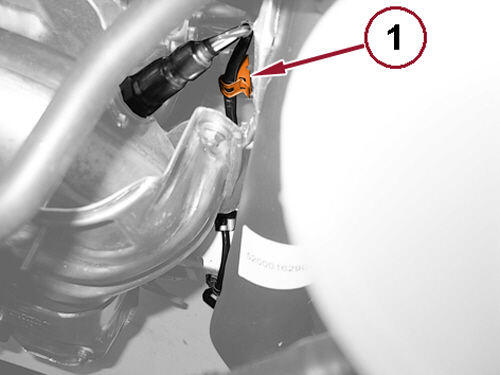

Disconnect the upstream oxygen sensor wiring to the catalytic converter from the upper retaining clip (1).

Courtesy of CHRYSLER GROUP, LLC

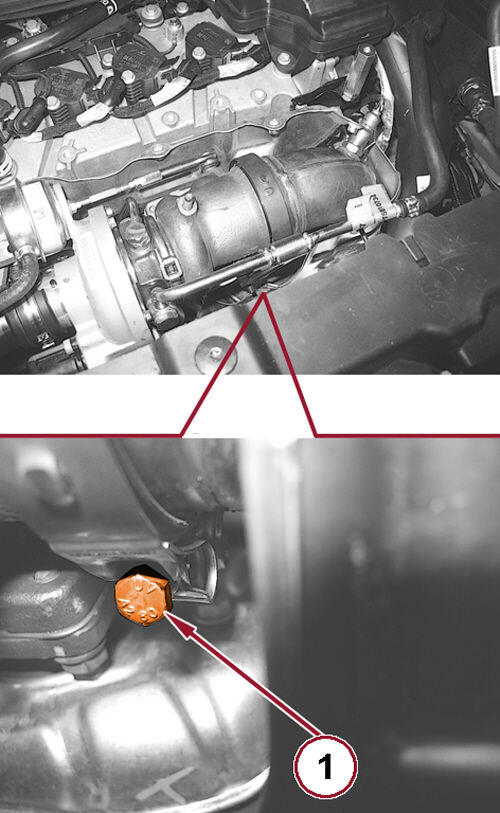

Loosen the bolt (1) securing the catalytic converter to the turbocharger.

Courtesy of CHRYSLER GROUP, LLC

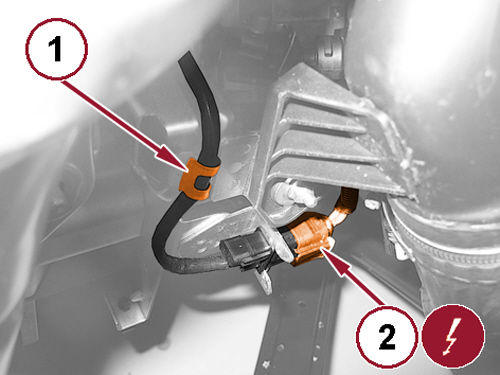

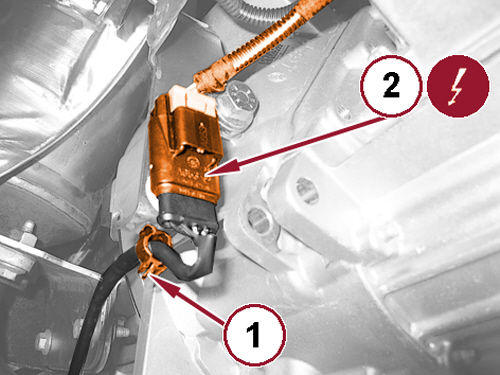

Detach the wiring from the spring retainer (1).
Disconnect the oxygen sensor wire harness connector (2).

Courtesy of CHRYSLER GROUP, LLC
Detach the wiring from the spring retainer (1).
Disconnect the front oxygen sensor wire harness connector (2) at the catalytic converter.

Courtesy of CHRYSLER GROUP, LLC

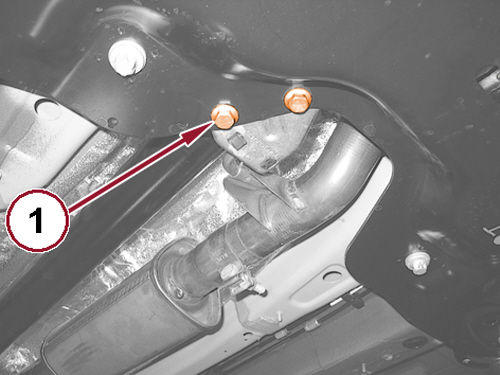

Remove the rear exhaust pipe support bracket bolts (1).

Courtesy of CHRYSLER GROUP, LLC

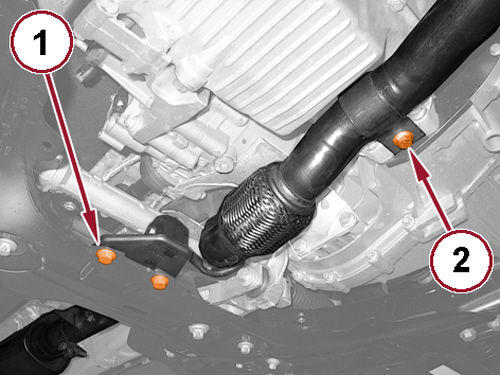

Remove the bolts (1) securing the front exhaust pipe support bracket.
Remove the bolt (2) securing the exhaust pipe to the engine oil pan.

Courtesy of CHRYSLER GROUP, LLC

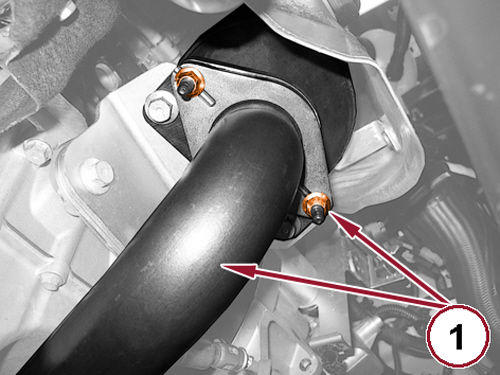

Remove the nuts and disengage the exhaust pipe from the catalytic converter (1).
Remove the gasket.

Courtesy of CHRYSLER GROUP, LLC

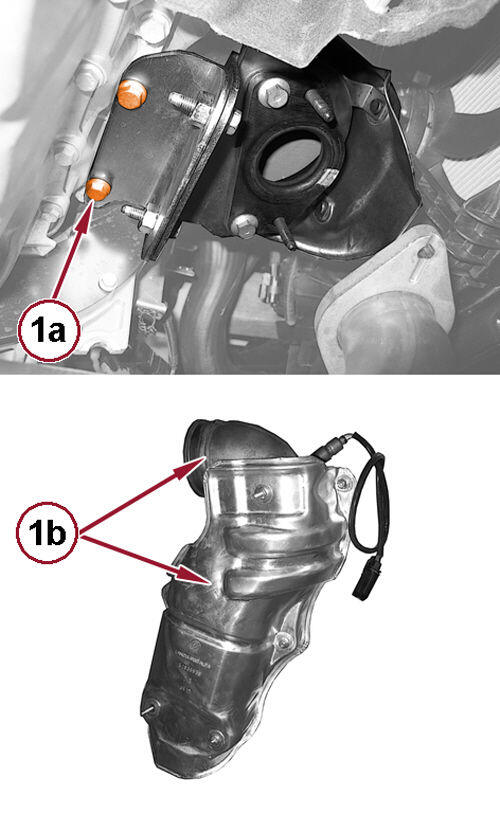

Remove the bolts (1a) and the catalytic converter with brackets (1b).
Remove the turbocharger-to-catalytic converter gasket.

Courtesy of CHRYSLER GROUP, LLC

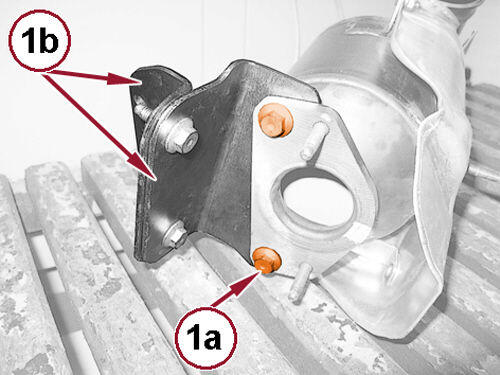

Remove the bolts (1a) and the catalytic converter brackets (1b).

Courtesy of CHRYSLER GROUP, LLC

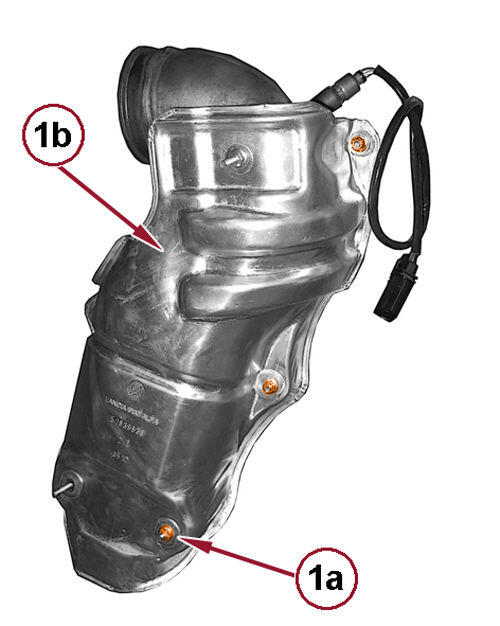

Remove the nuts (1a) and the heat shield (1b) from the catalytic convertor.

Courtesy of CHRYSLER GROUP, LLC

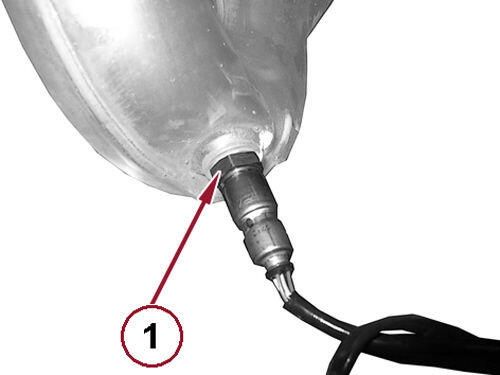

Remove the upstream oxygen sensor (1) from the catalytic converter.
