Removal And Installation: Installation

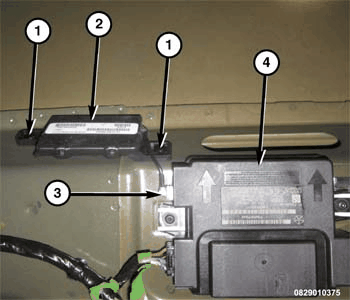

GC0160080Courtesy of CHRYSLER GROUP, LLC
  1. Position the remote start antenna (2) to its mounting surface and secure the antenna using two fasteners (1).
  2. Connect the remote start connector (3) to the RF Hub (4).
  3. Install the headliner. Refer to HEADLINER, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  5. Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
