Removal And Installation: Installation

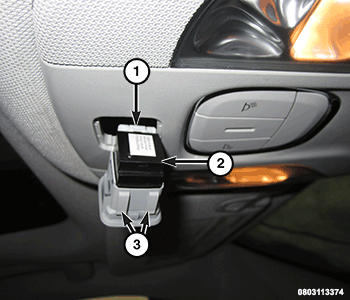

GC0179287Courtesy of CHRYSLER GROUP, LLC
  1. Connect the power liftgate switch wiring harness connector (1).
  2. Firmly press the power liftgate switch (2) into the overhead center console. Be sure that the retaining clips (3) are fully engaged.
  3. Connect the battery negative cable.
