Description And Operation: Description

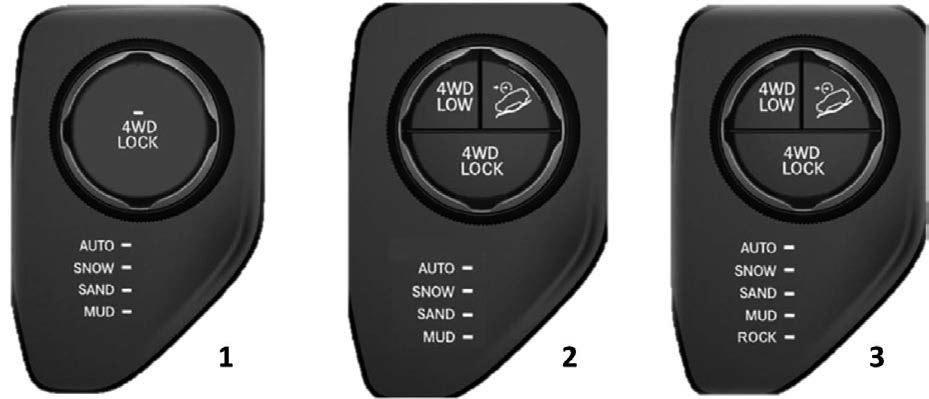

The Selec-Terrain offered on the vehicle is available in three configurations:
- 1. Jeep Active Drive.
- 2. Jeep Active Drive Low for Diesel 2.0 with AT9.
- 3. Jeep Active Drive Low with additional specific Rock function for Trailhawk versions.
The device, through the on-board electronic system, operates on the vehicle's dynamic control systems: engine, steering, ESC system, 4 X 4 system, gearbox/transmission, and is interfaced with the instrument panel. The rotating ring nut is monostable type. In other words, it always returns to the central position when released. The acceptance by the system of the requested driving mode is signaled by the LED, located besides the symbol, coming on, and by the corresponding symbol appearing on the instrument panel display.
