Module-Steering Column Control C2 (Standard) Connector End View (D3816B)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 33401467_33401469

Part Description: Not Available

Connector No: D3816B

Option: Standard

Repair Kit Part Number: 68502126AA

Cavity Count: 10

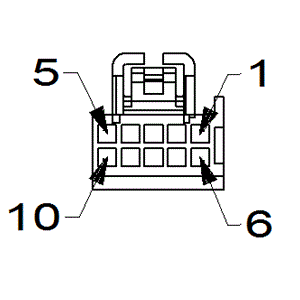

Fig 1: Module-Steering Column Control C2 Connector End View (Standard)

Courtesy of CHRYSLER

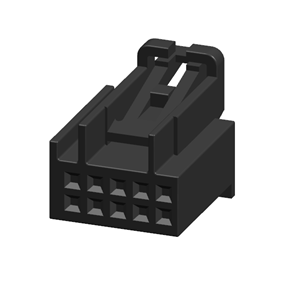

Fig 2: Module-Steering Column Control C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Steering Column Control C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Steering Column Control C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D402	OG/VT	0.35	LIN BUS CBC 2	N/A
2	D404	WH/BN	0.35	LIN BUS	N/A
3	N0	NA	0	NO CONNECT	N/A
4	N0	NA	0	NO CONNECT	EXCEPT PADDLE SHIFTING
5	N0	NA	0	NO CONNECT	EXCEPT PADDLE SHIFTING
6	N0	NA	0	NO CONNECT	N/A
7	N0	NA	0	NO CONNECT	N/A
8	A911	RD	0.50	FUSED B(+)	N/A
9	X3	DG/VT	0.50	HORN SWITCH SENSE	N/A
10	Z937	BK/BU	0.50	GROUND	PREMIUM
