Module-Inverter (Standard) Connector End View (D3920A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 1456471-1

Part Description: 8P UNSEALED HYBRID PLUG ASSEMBLY

Connector No: D3920A

Option: Standard

Repair Kit Part Number: 68137873AA

Cavity Count: 8

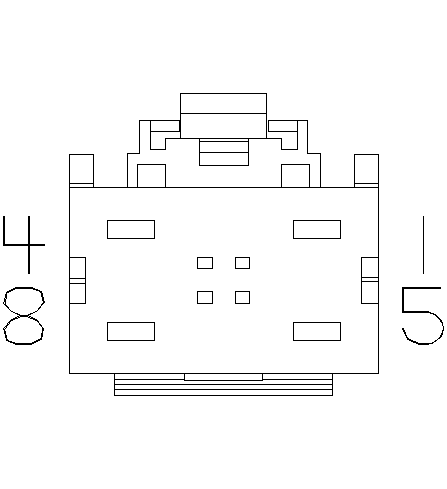

Fig 1: Module-Inverter Connector End View (Standard)

Courtesy of CHRYSLER

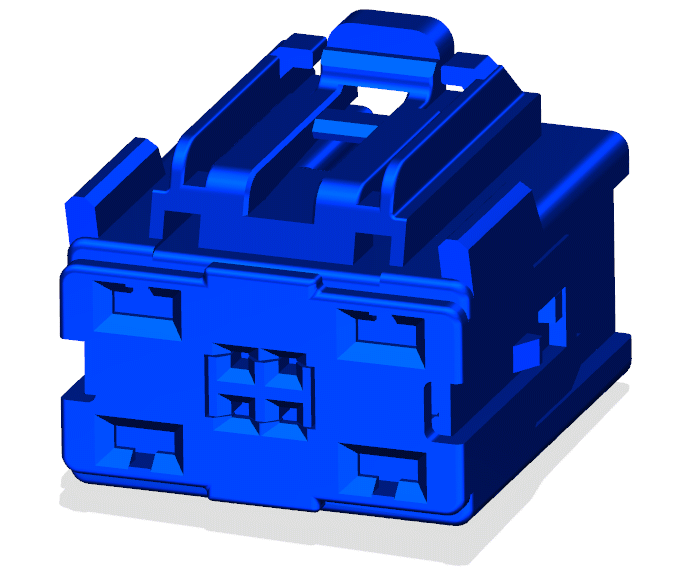

Fig 2: Module-Inverter Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Inverter Wire Insertion View (Standard)

Courtesy of CHRYSLER

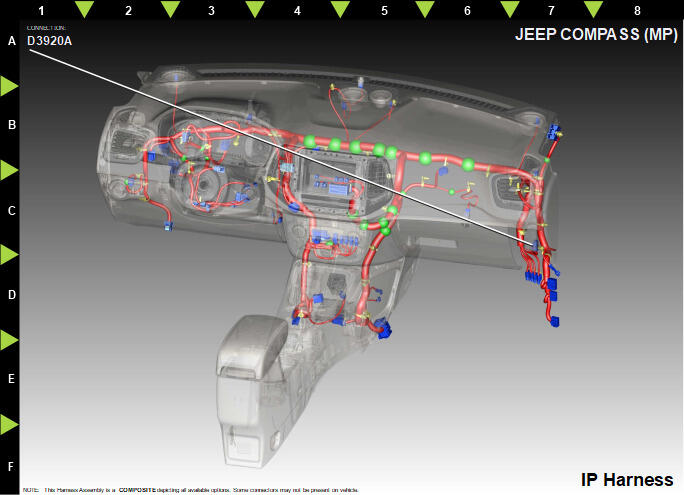

Fig 4: Module-Inverter Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P802	GN/OG	1.0	110/220 VOLT A/C INVERTER LINE 2	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	A401	RD/GN	2.0	FUSED B(+)	N/A
5	P801	GN	1.0	110/220 VOLT A/C INVERTER LINE 1	N/A
6	P805	GN/DB	0.50	110/220 VOLT A/C INVERTER ENABLE	N/A
7	N0	NA	0	NO CONNECT	N/A
8	Z930	BK	2.0	GROUND	N/A
