Switch-Speed Control (Standard) Connector End View (D2213A)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 50-57-9404

Part Description: HSG92.54)/.100 GRID STACKABLE SINGLE ROW

Connector No: D2213A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Switch-Speed Control Connector End View (Standard)

Courtesy of CHRYSLER

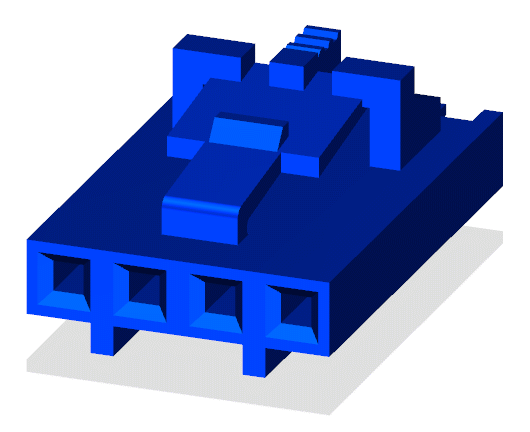

Fig 2: Switch-Speed Control Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Switch-Speed Control Wire Insertion View (Standard)

Courtesy of CHRYSLER

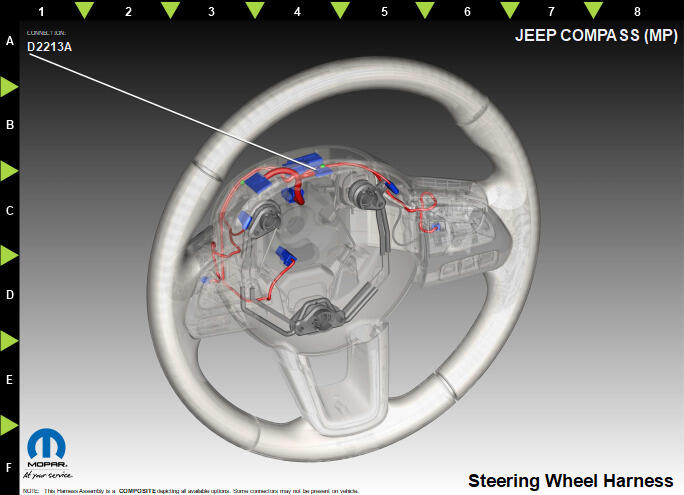

Fig 4: Switch-Speed Control Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A911	RD	0.35	FUSED B(+)	N/A
2	D404	WH	0.35	LIN BUS	N/A
3	E4	GY	0.35	STEERING WHEEL SWITCH ILLUMINATION	N/A
4	Z935	BK	0.35	GROUND	N/A
