Resistor-Radiator Fan 1 (Standard) Connector End View (D8126A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 15336024

Part Description: CONNECTOR ASSEMBLY GT 150

Connector No: D8126A

Option: Standard

Repair Kit Part Number: 68052576AA

Cavity Count: 2

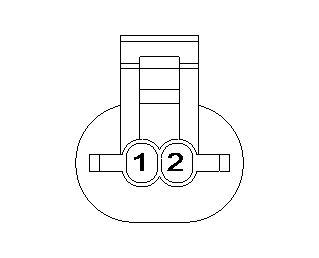

Fig 1: Resistor-Radiator Fan 1 Connector End View (Standard)

Courtesy of CHRYSLER

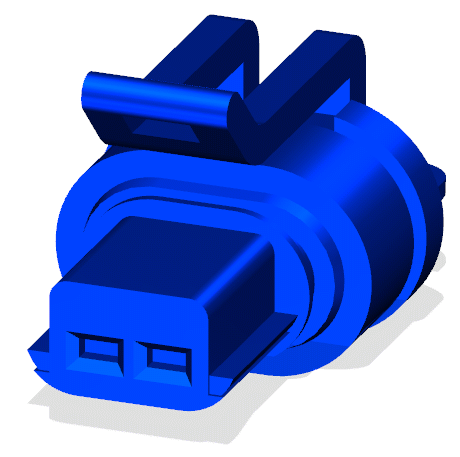

Fig 2: Resistor-Radiator Fan 1 Isometric View (Standard)

Courtesy of CHRYSLER

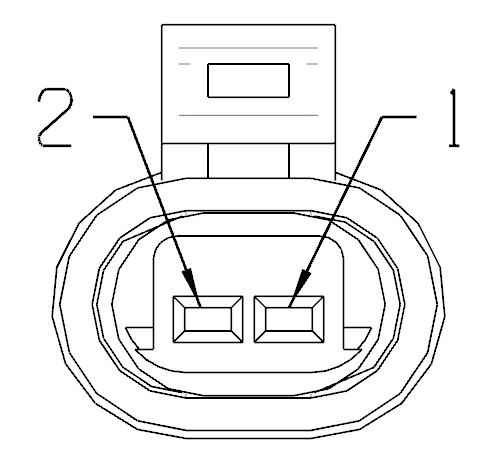

Fig 3: Resistor-Radiator Fan 1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

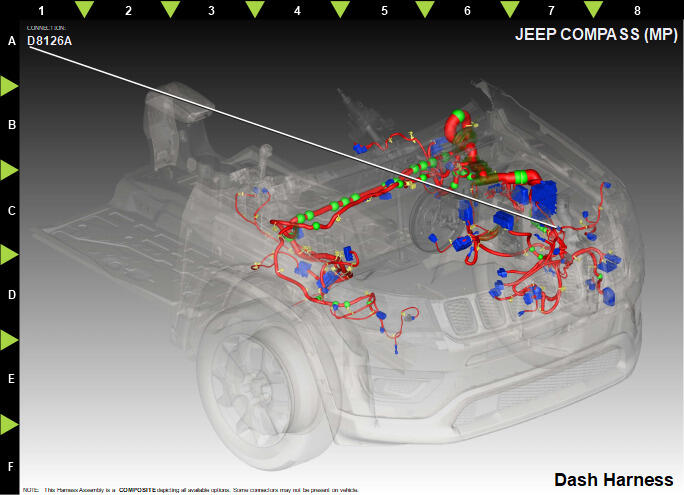

Fig 4: Resistor-Radiator Fan 1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N29	DB/BU	0.75	RADIATOR FAN ENABLE SIGNAL	N/A
2	Z913	BK/VT	0.75	GROUND	N/A
