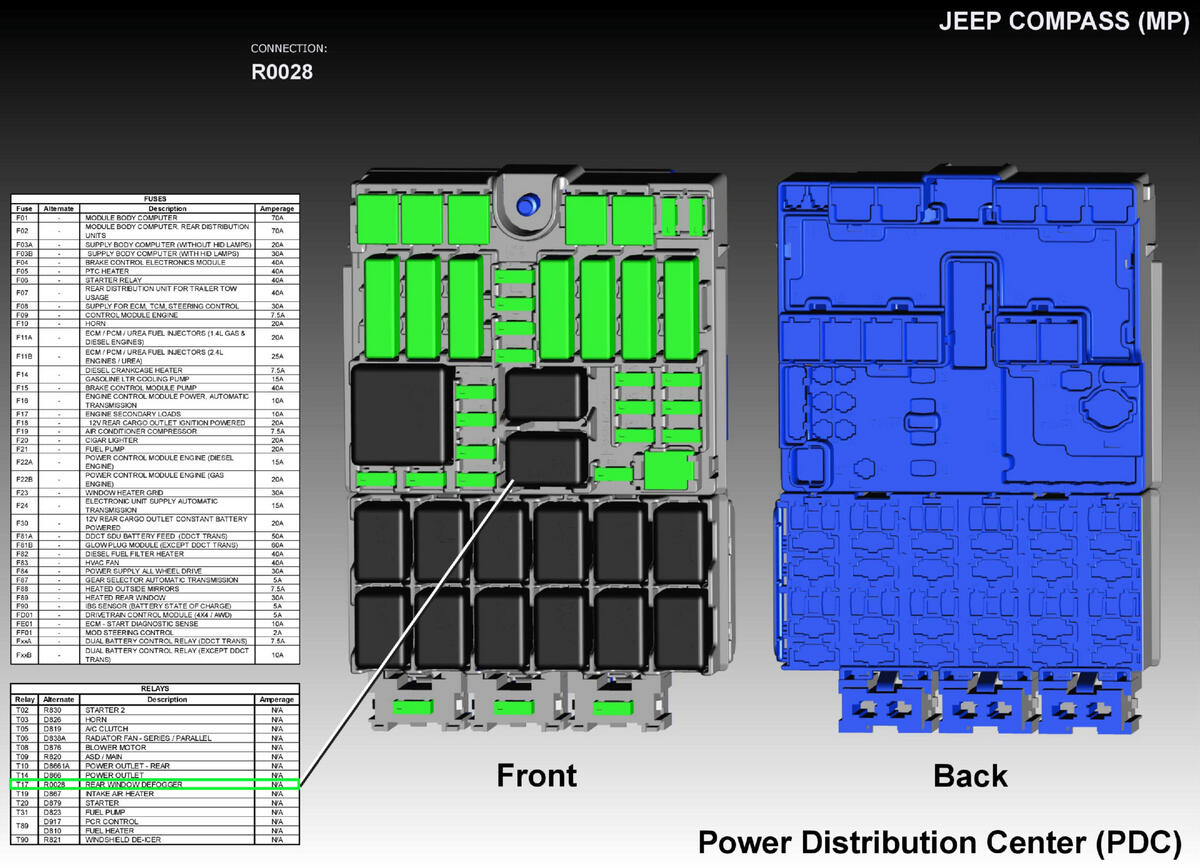

Relay-Rear Window Defogger (Standard) Connector End View (R0028)
Harness-Family: PDC_FRB
Color: NA
Gender: MALE
Part Number: Relay_Micro
Part Description: Not Available
Connector No: R0028
Option: Standard
Repair Kit Part Number: See StarParts
Cavity Count: 5
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 30 | A112 | INTERNAL | NA | FUSED B(+) | N/A |
| 85 | C115 | INTERNAL | NA | DEFOGGER RELAY CONTROL | N/A |
| 86 | F944 | INTERNAL | NA | FUSED IGNITION | N/A |
| 87 | A1 | INTERNAL | NA | FUSED B(+) | N/A |
