Module-Transmission Control (DF7 6 Speed) Connector End View (D3855A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 7158-7475-30_7283-9412-30

Part Description: Not Available

Connector No: D3855A

Option: DF7 6 SPEED

Repair Kit Part Number: TBD Grp36-10

Cavity Count: 16

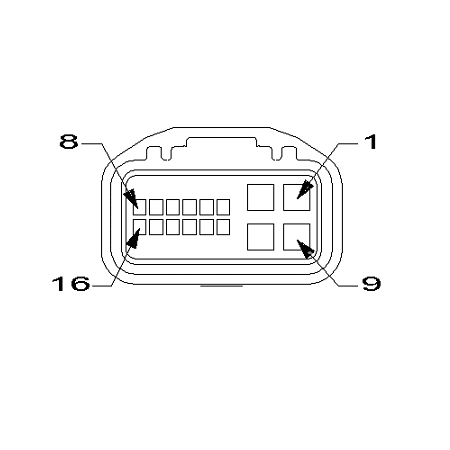

Fig 1: Module-Transmission Control Connector End View (DF7 6 SPEED)

Courtesy of CHRYSLER

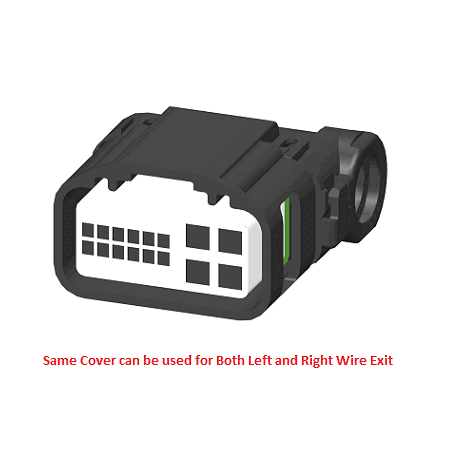

Fig 2: Module-Transmission Control Isometric View (DF7 6 SPEED)

Courtesy of CHRYSLER

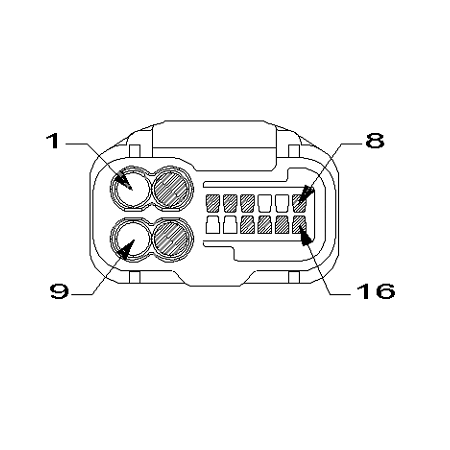

Fig 3: Module-Transmission Control Wire Insertion View (DF7 6 SPEED)

Courtesy of CHRYSLER

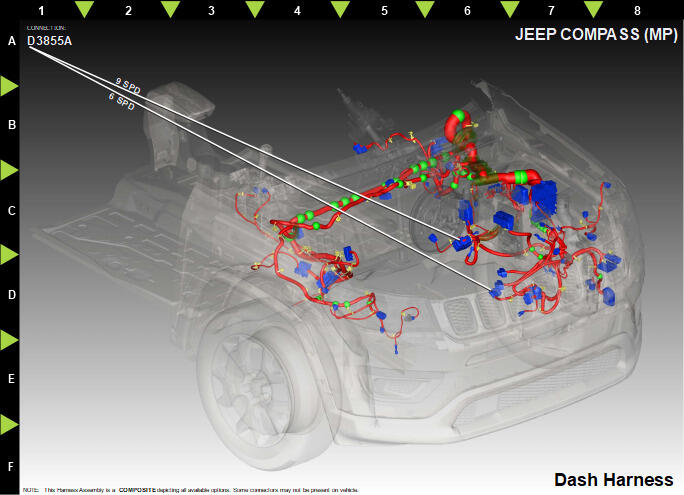

Fig 4: Module-Transmission Control Component Location View (DF7 6 SPEED)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A192	VT/RD	0.75	FUSED B(+)	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	D30	YE	0.50	CAN C (-)	N/A
7	D29	VT/WH	0.50	CAN C (+)	N/A
8	N0	NA	0	NO CONNECT	N/A
9	Z907	BK/BU	0.75	GROUND	N/A
10	N0	NA	0	NO CONNECT	N/A
11	F942	PK/VT	0.50	FUSED IGNITION RUN	N/A
12	N0	NA	0	NO CONNECT	N/A
13	N0	NA	0	NO CONNECT	N/A
14	N0	NA	0	NO CONNECT	N/A
15	N0	NA	0	NO CONNECT	N/A
16	N0	NA	0	NO CONNECT	N/A
